Schools and universities need displays that remain clear in well-lit rooms, scale to large teaching spaces, and support both daily lessons and campus-wide communication. Direct-view LED can meet these needs without projector shadows or the visible bezel lines of LCD video walls.
LEDER has manufactured LED displays since 2002. Our indoor portfolio includes fine-pitch 16:9 displays for classrooms and meeting spaces, customizable formats for lecture halls and auditoriums, and value-focused solutions for campus signage.
· Smart classrooms and hybrid-learning spaces
· Lecture halls and large teaching rooms

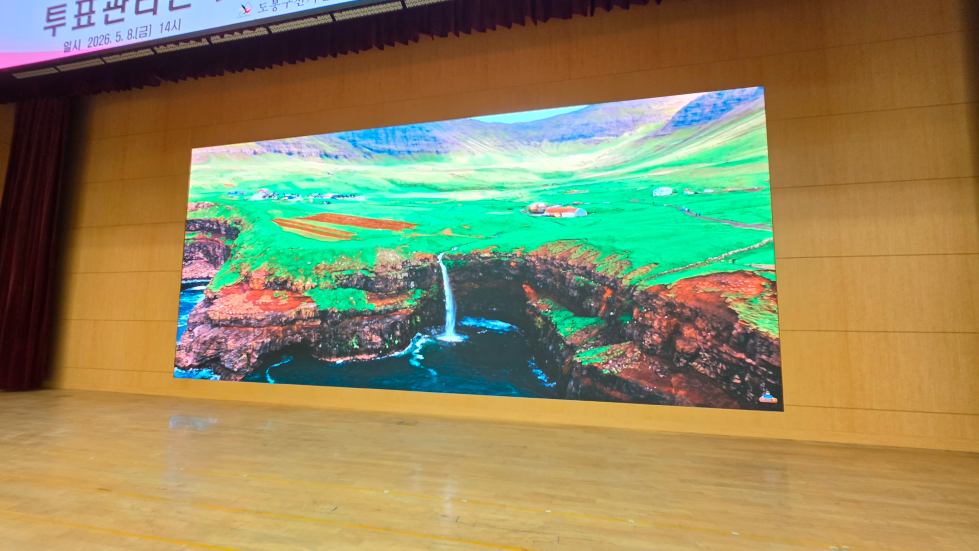

· School auditoriums, stages and multipurpose halls

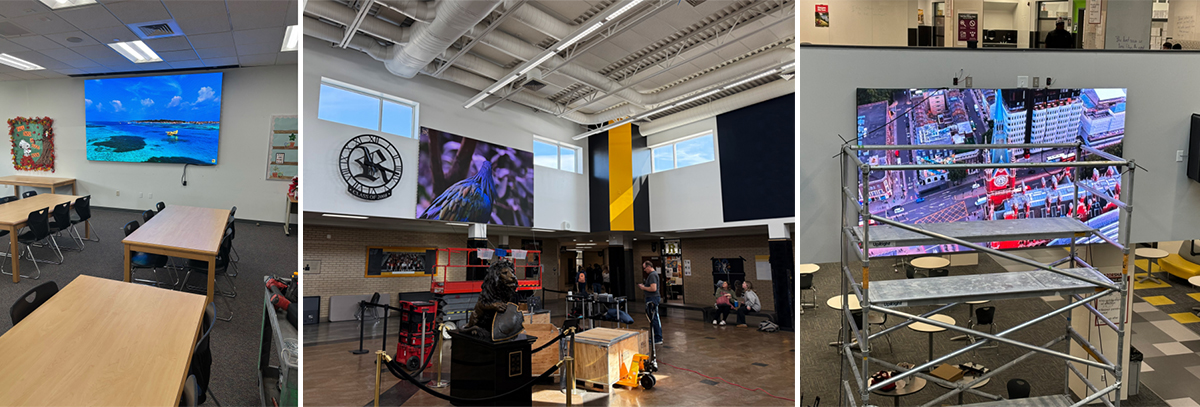

· Libraries, innovation labs and student activity centers
· Conference rooms and administrative meeting spaces
· Campus lobbies, information centers and digital signage
· Clear images in ambient light: direct-view LED is well suited to classrooms and public spaces where room lighting cannot always be dimmed.
· Seamless large-format visuals: LED displays can be scaled without the bezel lines seen in LCD video walls.
· Flexible resolution planning: pixel pitch and cabinet layout can be matched to viewing distance, screen size and the required resolution.
· Multi-purpose content: one screen can present teaching materials, video, live feeds, announcements and event content.
A smaller pixel pitch provides more image detail at close viewing distances, while a larger pitch can be a more economical choice for bigger rooms where viewers sit farther away. The correct choice should consider the nearest viewing distance, total screen dimensions, content type, target resolution and project budget together - not pixel pitch alone.

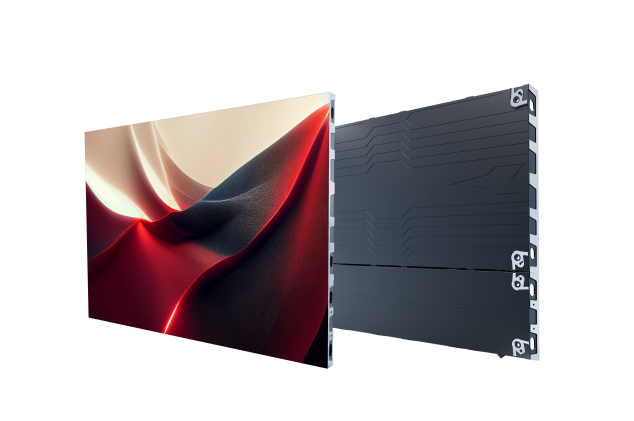

A modular indoor LED solution for projects that require customized screen dimensions or cabinet combinations.
Cabinet sizes: 1000 x 500 mm / 1000 x 250 mm / 750 x 250 mm / 250 x 250 mm
Pixel pitches: P1.56 / P1.95 / P2.5 / P2.6 / P2.97 / P3.91
Best fit: lecture halls, auditoriums and installations where the wall dimensions do not match a standard 16:9 screen.

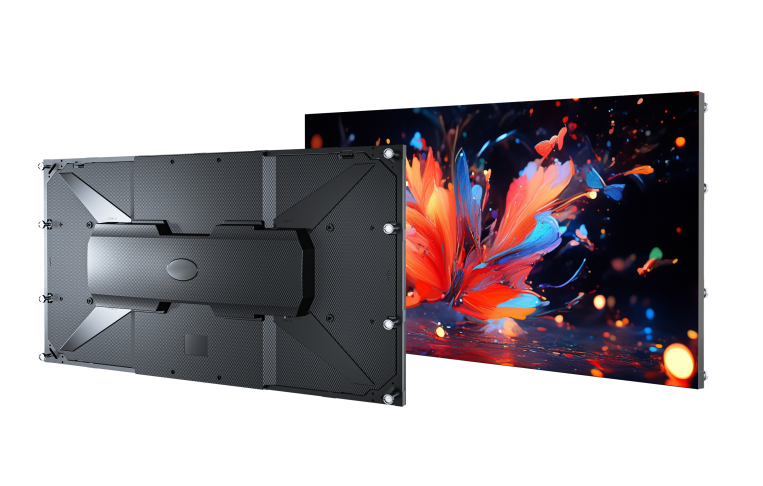

A 16:9 cabinet platform that simplifies common Full HD and 4K screen configurations while maintaining a clean, consistent display surface.
Cabinet size: 600 x 337.5 mm
Pixel pitches: P1.25 / P1.56 / P1.875
Best fit: smart classrooms, boardrooms, control rooms and other close-viewing applications.

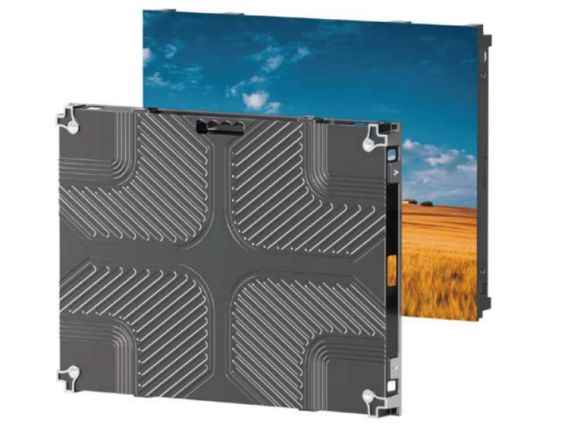

A cost-conscious indoor LED solution that balances image quality, practical installation and project budget.
Cabinet size: 640 x 480 mm
Pixel pitches: P1.25 / P1.53 / P1.86 / P2.0 / P2.5
Best fit: campus information displays, meeting rooms and education projects with a strong focus on value.
Space | Main priority | Suggested series | Starting options |
Smart classroom | Close viewing; 16:9 content | LP2 PLUS | P1.25-P1.875 |
Lecture hall | Custom dimensions and clear text | Advance | P1.56-P2.97 |
Auditorium | Large format and budget balance | Advance / LIT | P2.0-P3.91 |
Campus signage | Value and straightforward installation | LIT | P1.86-P2.5 |
Starting options only. Final pixel pitch and cabinet layout depend on viewing distance, screen size, target resolution, installation conditions and budget.
To recommend the correct pixel pitch, cabinet combination and control solution, please share:
· Required screen width and height
· Nearest and farthest viewing distance
· Photos or drawings of the installation location
· Target resolution and main signal sources
· Front- or rear-maintenance constraints
· Project location and required delivery date
A successful education display is not defined by price per square meter alone. It should be designed around the room, viewing distance, content and service requirements. Send LEDER your project details, and our team will prepare a project-specific recommendation covering screen configuration, control system, power and signal layout, mounting approach and spare parts.
