LMA Series
It is more in line with the products in the use of British -made units, with simple appearance, strong design, aluminum material body, high product quality, strong environmental compatibility, all aluminum modules, good heat dissipation effects, high -fidelity real picture quality, comfortable viewing effects.

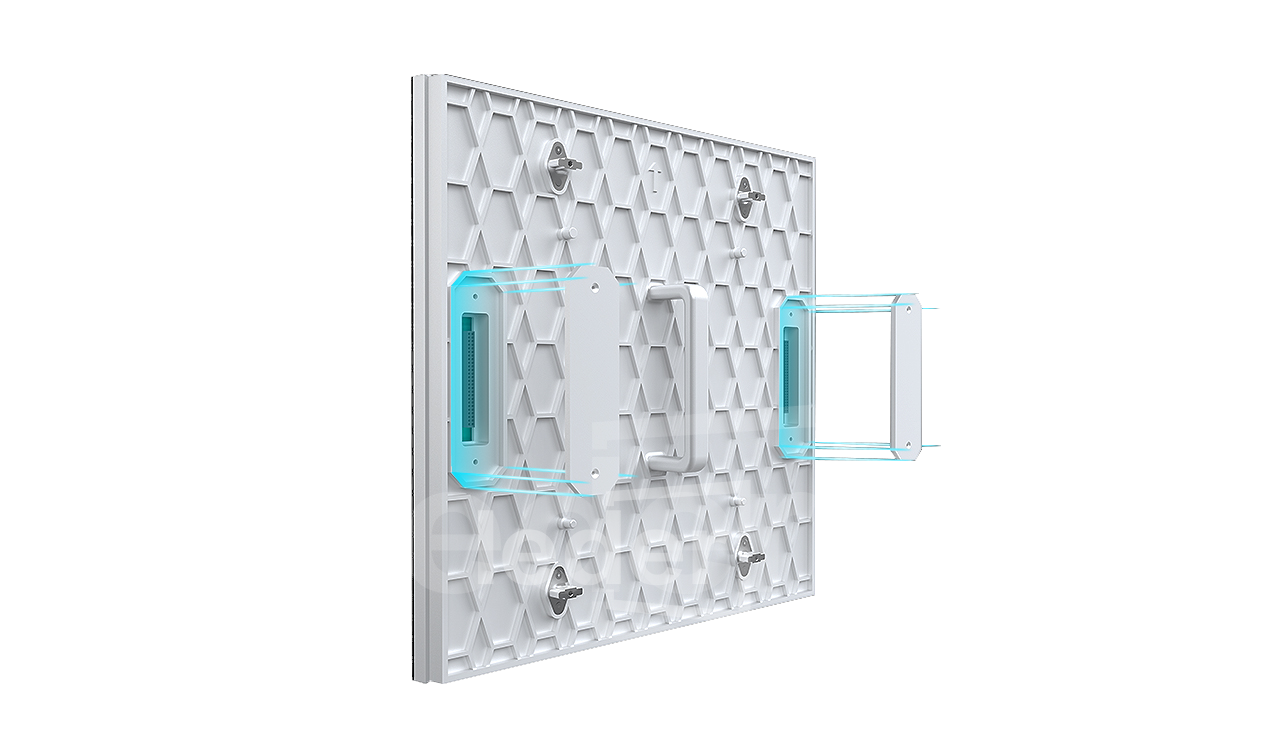

Dual ports module
Dual power/signal ports,hidden design, support left/right modules interchangeable connection

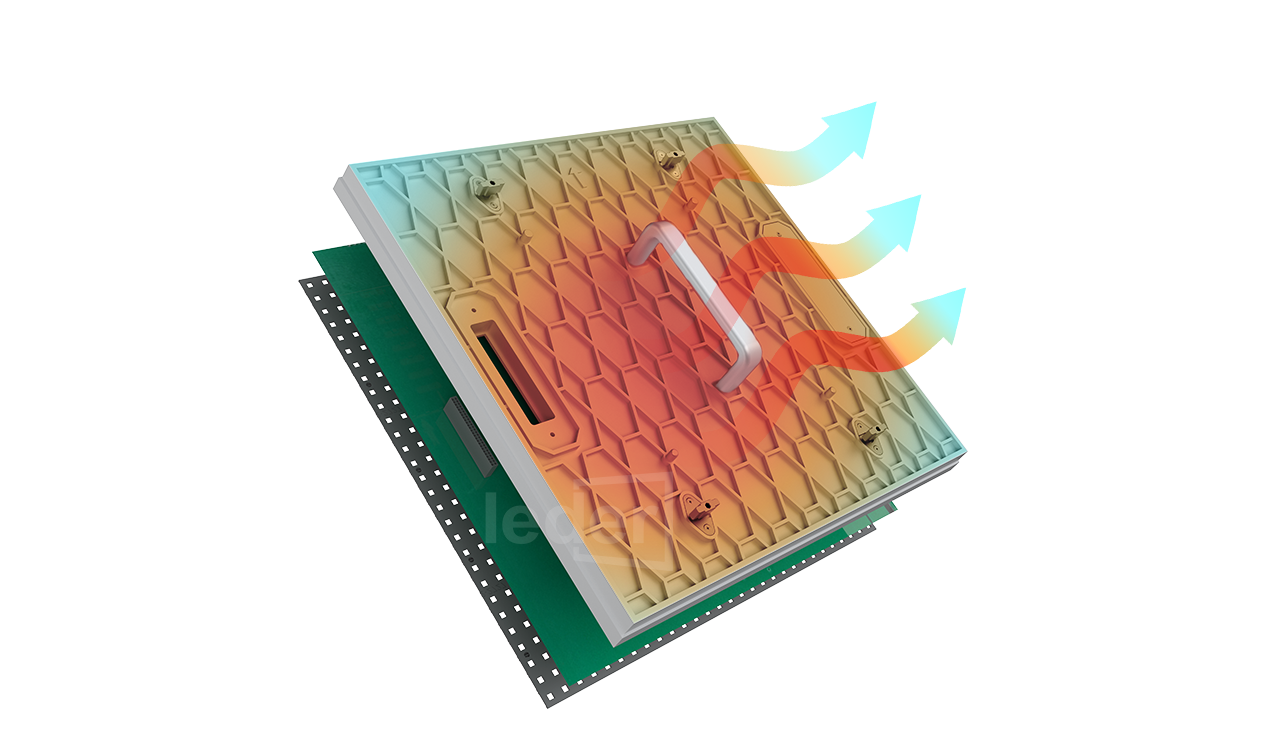

Metal heat dissipation, good sealing effect
The module 1'x1’ is designed with a full -scale aluminum seal, which has an excellent "three defense" effects. Meanwhile, the heat dissipation area is large, which is conducive to the screen body heat dissipation.

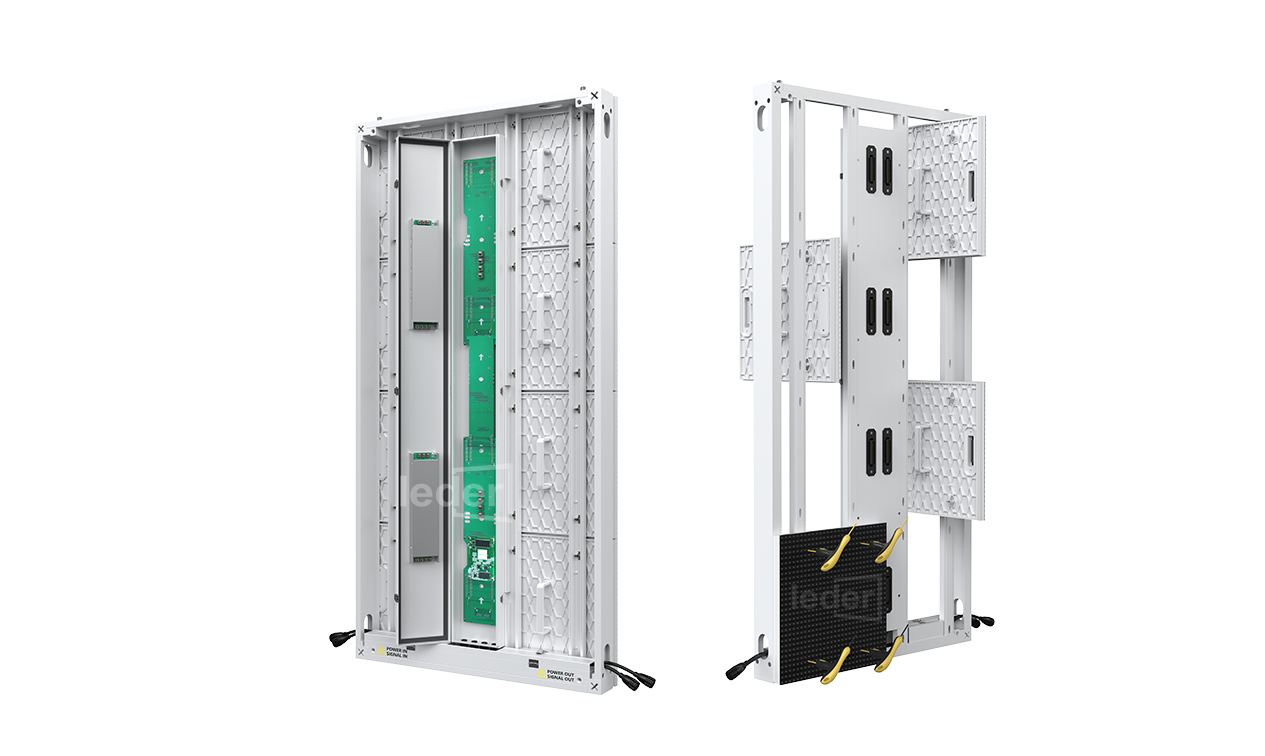

Front / Rear maintenance
Without environmental constraintsand
support the removal of modules in front
and back for maintenance.

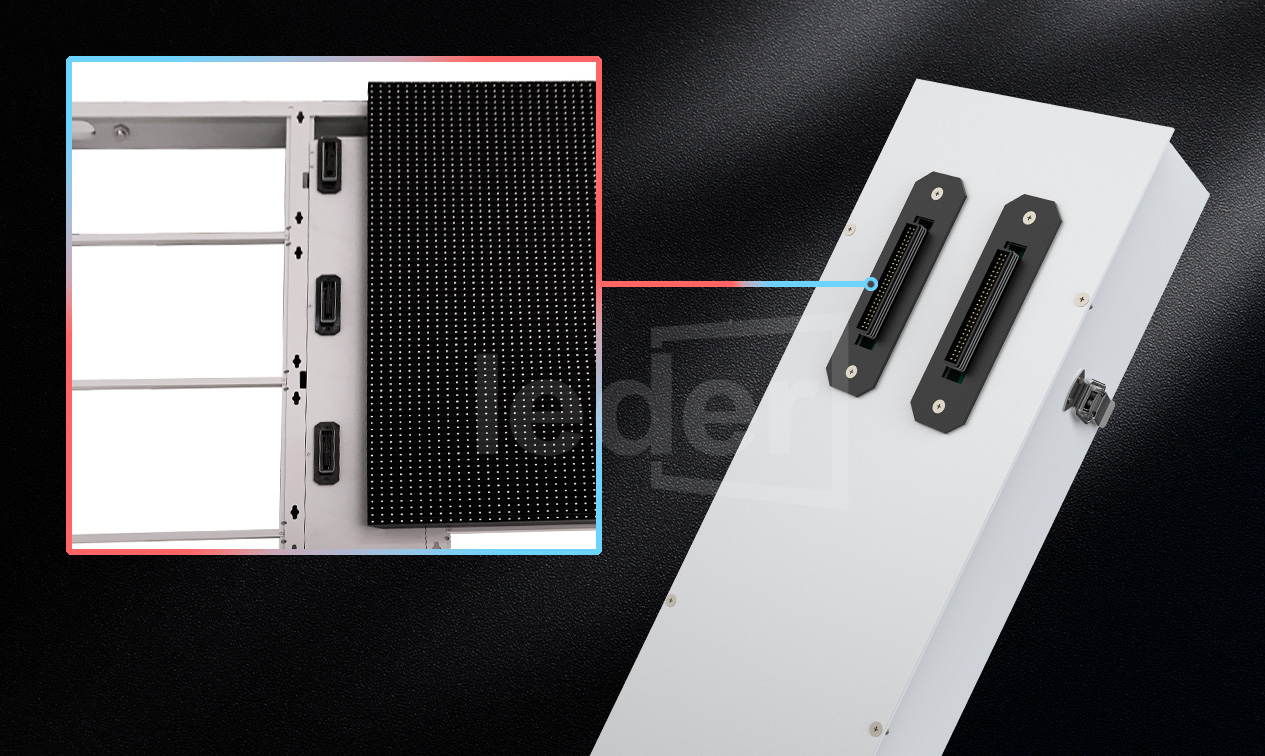

Hardware connection
The whole panel adopts Hub connection between module and receiver for stable signal and power

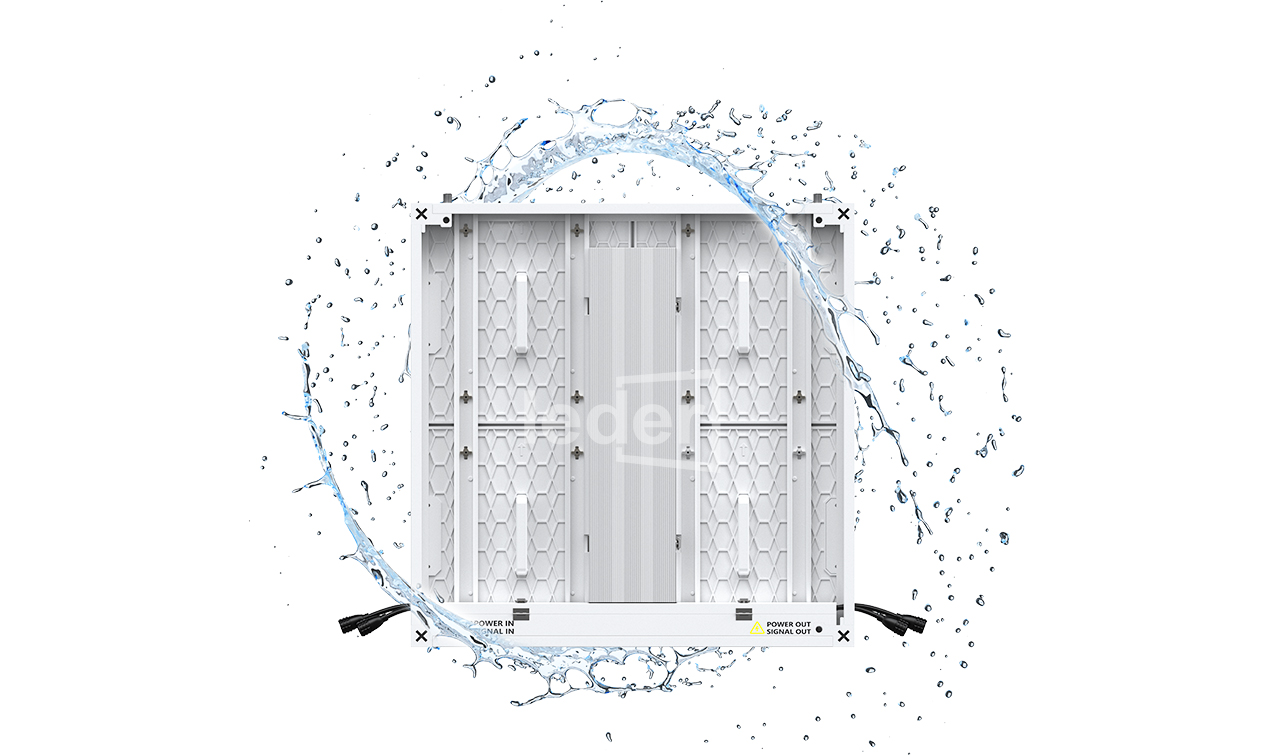

Excellent outdoor protection
Full sealed module, side waterproof design, the protection class of the module reaches IP66, sealed power supply design. Dust-proof, moisture-proof, anticorrosion, perfect solution to the three proofings problems of display screen , Good heat dissipation performance, long service life
Item | P4.76 | P6.35 | P9.52 |
Pixel Pitch | 4.7625mm | 6.35mm | 9.525mm |
LED Type | SMD1921 | SMD2727 | SMD2727 |
Module Resolution | 64dots x 64dots | 48dots x 48dots | 32dots x 32dots |
Driving Mode | 1/8scan | 1/6scan | 1/2scan |
Module Pixels | 4,096dots | 2,304dots | 1,024dots |
Module Size | 1'(W) x 1'(H) | ||

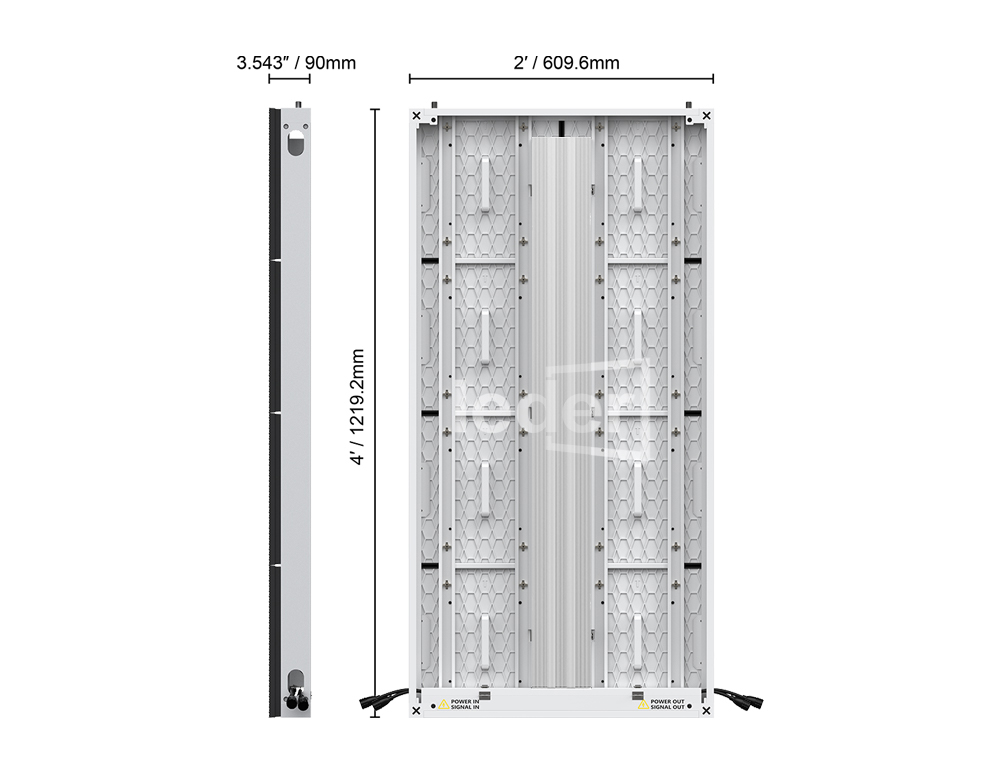

Cabinet Size | 2' x 4' ( 2' x 2' or 2' x 3' available) | ||
Cabinet Resolution | 128dots x 256dots | 96dots x 192dots | 64dots x 128dots |
Pixel Density | 44,088dots/m² | 24,800dots/m² | 11,022dots/m² |
Best Viewing Distance | ≥4.7m | ≥6.3m | ≥9.5m |
Brightness | 6,000nits / 9,000nits | 6,000nits / 9,000nits | 6,000nits / 10,000nits |
IP Grade | IP65 | ||
Refresh Rate | 3,840Hz | ||
Gray Scale | 16bits | ||
Viewing Angle | H:110° / V:110° | ||
Maximum Power Consumption | 720W/m² | 550W/m² | 550W/m² |
Average Power Consumption | 215W/m² | 180W/m² | 180W/m² |
Input Voltage | AC110V - AC220V @ 50Hz/60Hz | ||
Operating Temperature | ﹣20℃～50℃ | ||
Operating Humidity | 10%～90% | ||
Cabinet Material | Die-casting Aluminum | ||

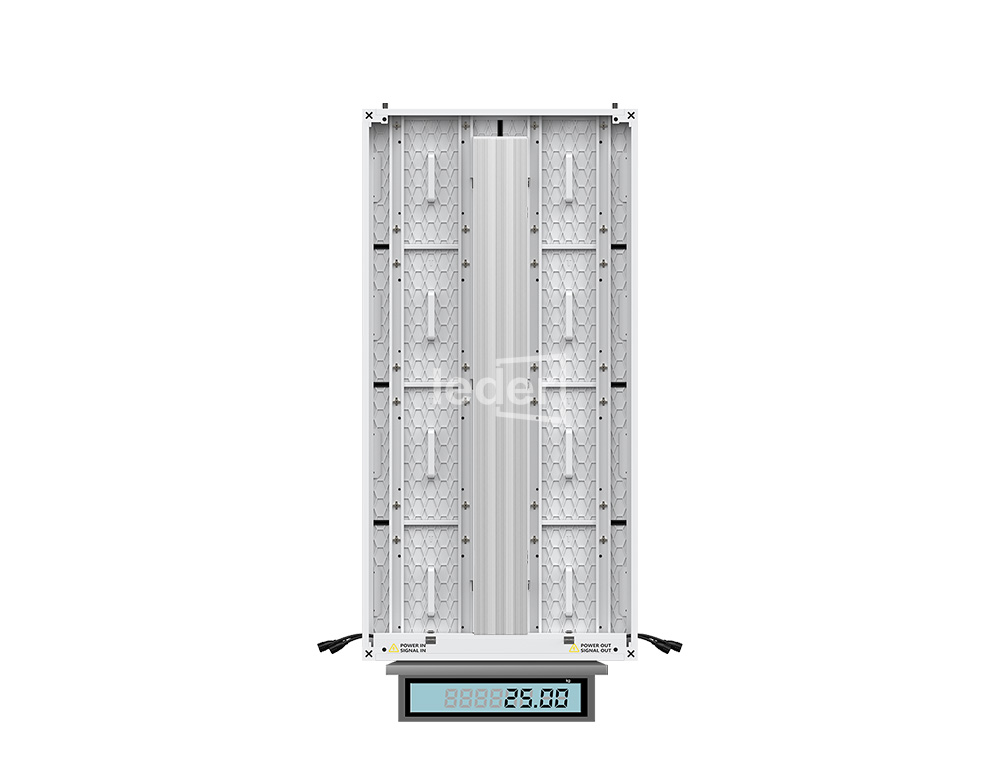

Cabinet Weight | 2'x2'/15kg, 2'x3’/20kg, 2'x4'/26kg | ||
Operating System | Windows (Win7, Win10 etc.) | ||
Signal Source Compatibility | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. | ||
