LRI-Y 500x500mm (Indoor)

Leder 500x500 rental cabinet , with integrated  die-casting Aluminum material and smart  design which including Anti-Collision and  seamless connection , light weight , easy to  move and install and curved available to  make sure different creative solutions.

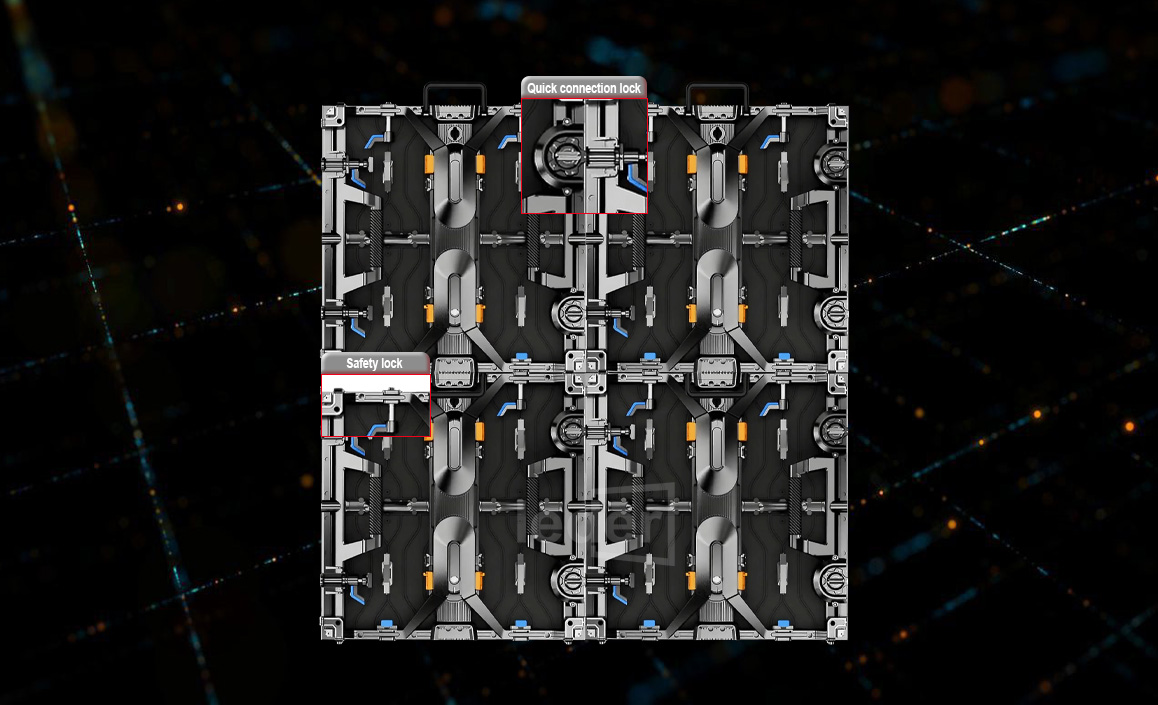

01 Independent quick lock, single quick installation

Support and single-person quick maintenance, the box body up and down, left and right locks can be quickly disassembled and assembled.
02

Higher security

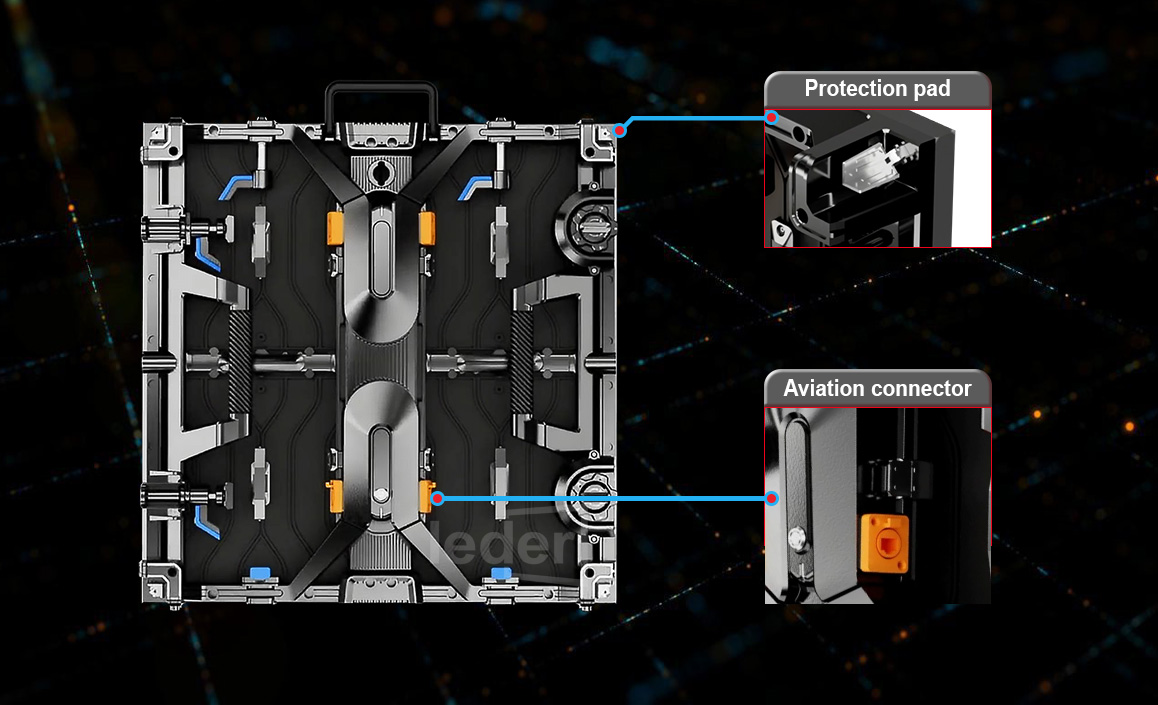

There are lamp guard flips at the four corners of cabinet to protect modules corners and led lamps during transit.

03

Variety of shapes, creative lease

Perfect quick-lock connection structure, diversified cabinet splicing styles, infinite possibilities for creative screen design.

Parameter
ItemP1.9P2.5P2.6P2.9P3.9P4.8
Pixel   Pitch 1.953mm2.5mm2.604mm2.976mm3.906mm4.807mm
LED Type SMD1515SMD1515SMD1515SMD2020 SMD2020SMD2020
Module   Resolution 128dots × 128dots100dots × 100dots96dots × 96dots84dots × 84dots64dots × 64dots52dots × 52dots
Driving   Mode 1/321/321/16 or 1/321/281/161/13
Module   Pixels 16,384dots10000dots9,216dots7,056dots4,096dots2,704dots
Module   Size 250mm × 250mm

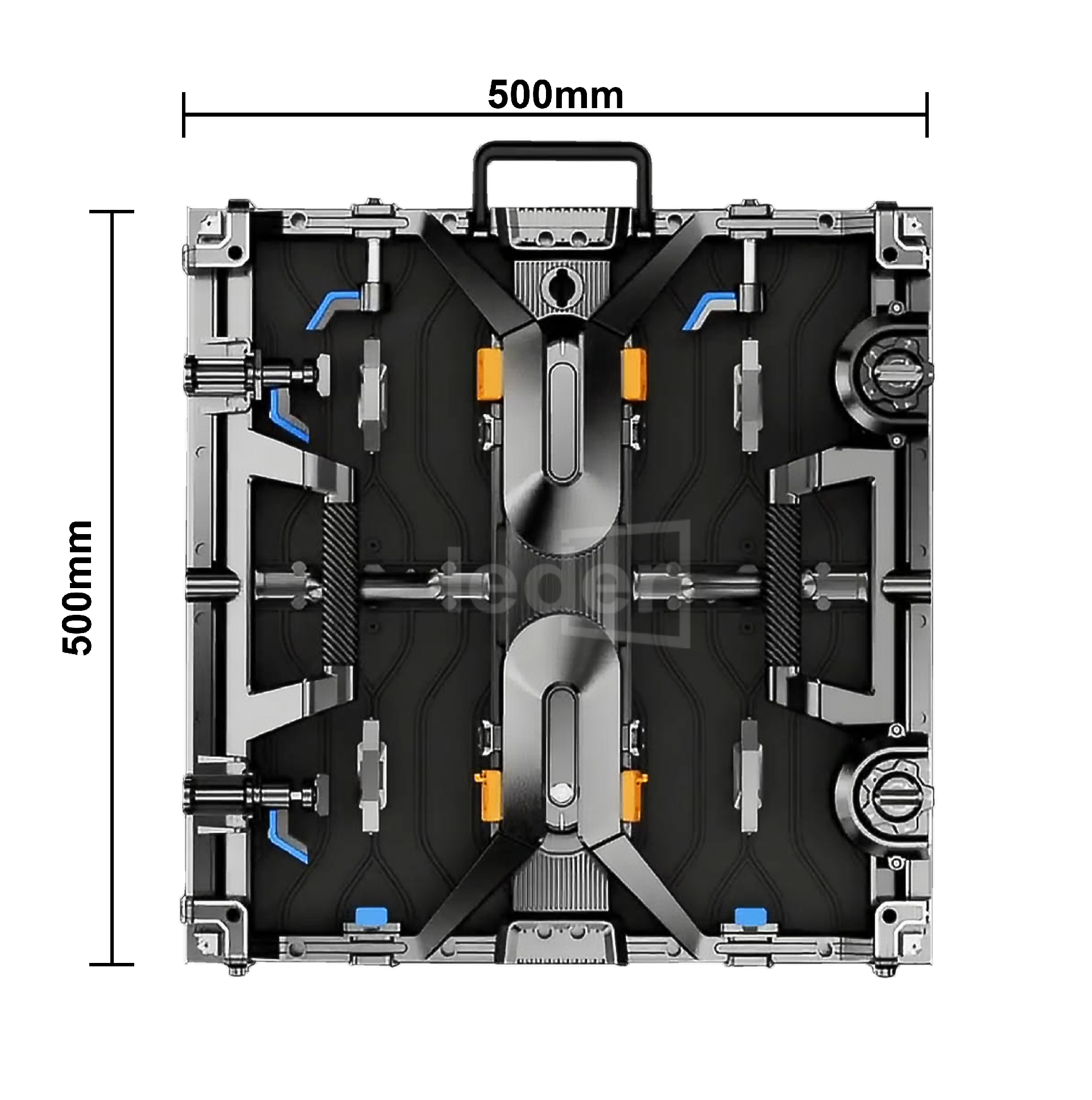

Cabinet   Size 500mm x 500mm or 500mm x 1000mm
Cabinet   Resolution( 500mm × 500mm) 256dots × 256dots200dotsx200dots192dots × 192dots168dots × 168dots128dots × 128dots104dots × 104dots
Pixel   Density 262,144dots/㎡160,000dots/㎡147,456dots/㎡112,896dots/㎡65,536dots/㎡43,264dots/㎡
Best Viewing   Distance ≥1.9m≥2.5m≥2.6m≥2.9 m≥3.9 m≥4.8 m
Brightness 800nits
IP Grade IP43
Refresh   Rate ＞3,840Hz
Gray   Scale 14bits～22bits(depends on IC driver and controller   solution )
Viewing   Angle H:110° / V:110°
Maximum Power   Consumption  350W/㎡350W/㎡500W/㎡ or 350W/㎡500W/㎡500W/㎡500W/㎡
Average Power   Consumption120W/㎡120W/㎡160W/㎡ or 120W/㎡160W/㎡160W/㎡160W/㎡
Input   Voltage AC110V～AC220V @ 50Hz / 60Hz
Cabinet   MaterialDie-casting Aluminum

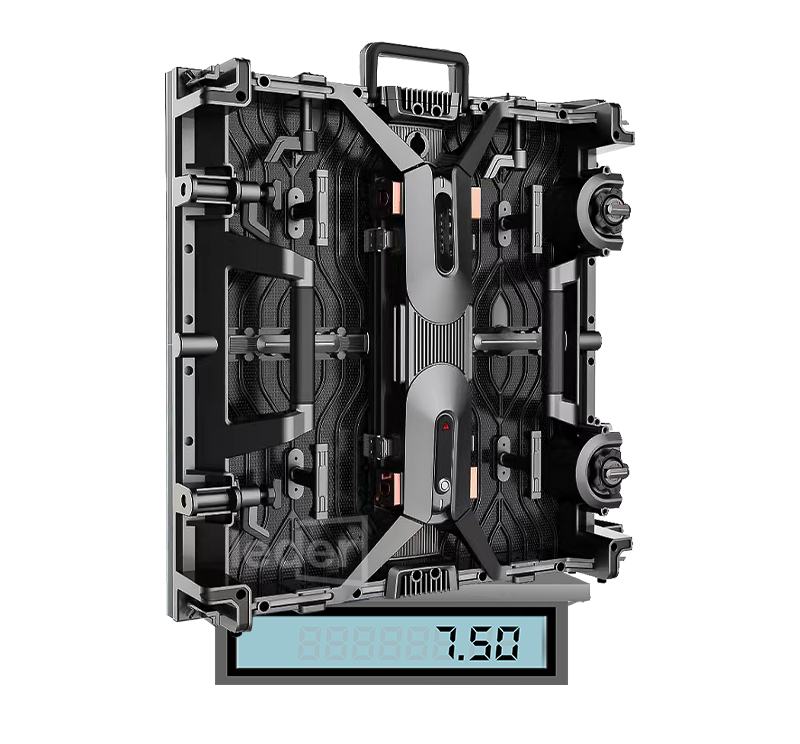

Cabinet   Weight  (500mm × 500mm)7.5kg/panel



* Depending on the configuration, the parameters are for reference only. Welcome to inquire. The final interpretation right belongs to Leder
