LW1 Series

Adopted integrated die-casting aluminum design, High strength, high precision, strong durability, excellent environmental compatibility, Stable and powerful performance,transparent and bright color display, high image quality and fidelity.

01

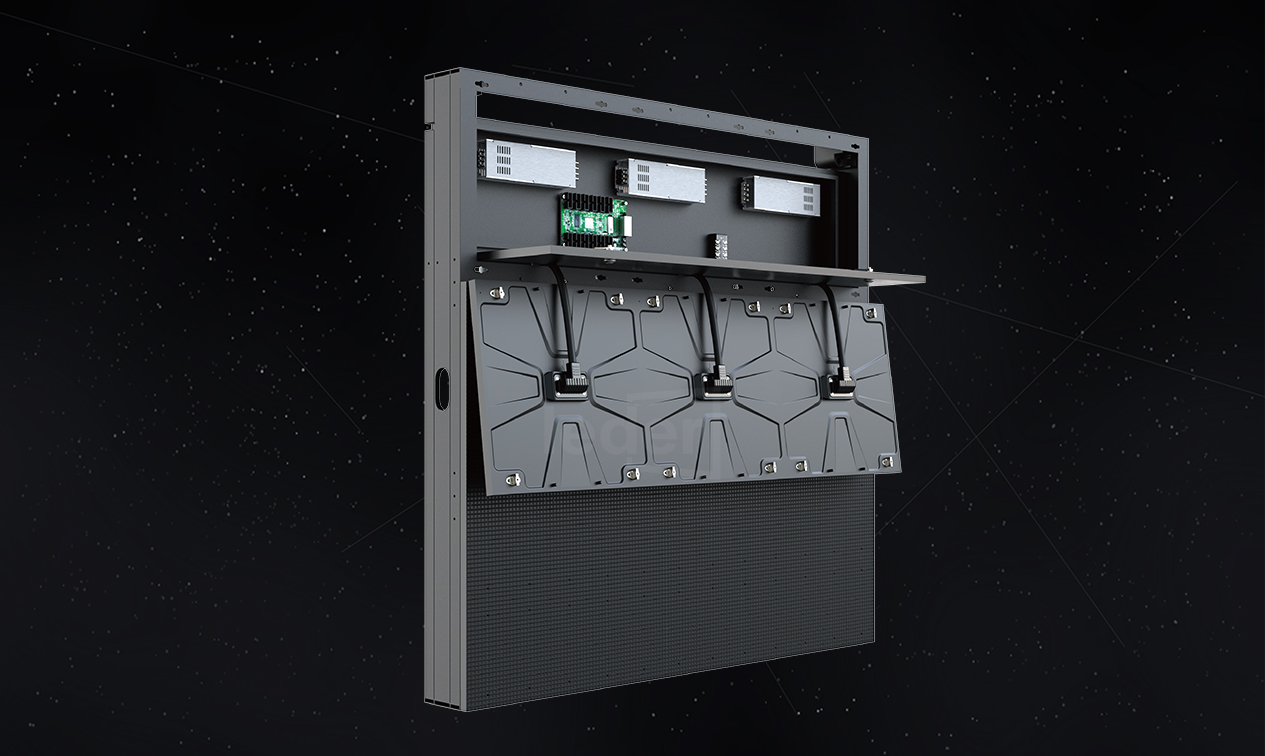

Front maintenance

No complicated work steps are required, just remove the module covering the power box, and then the power box can be opened for maintenance work.

02

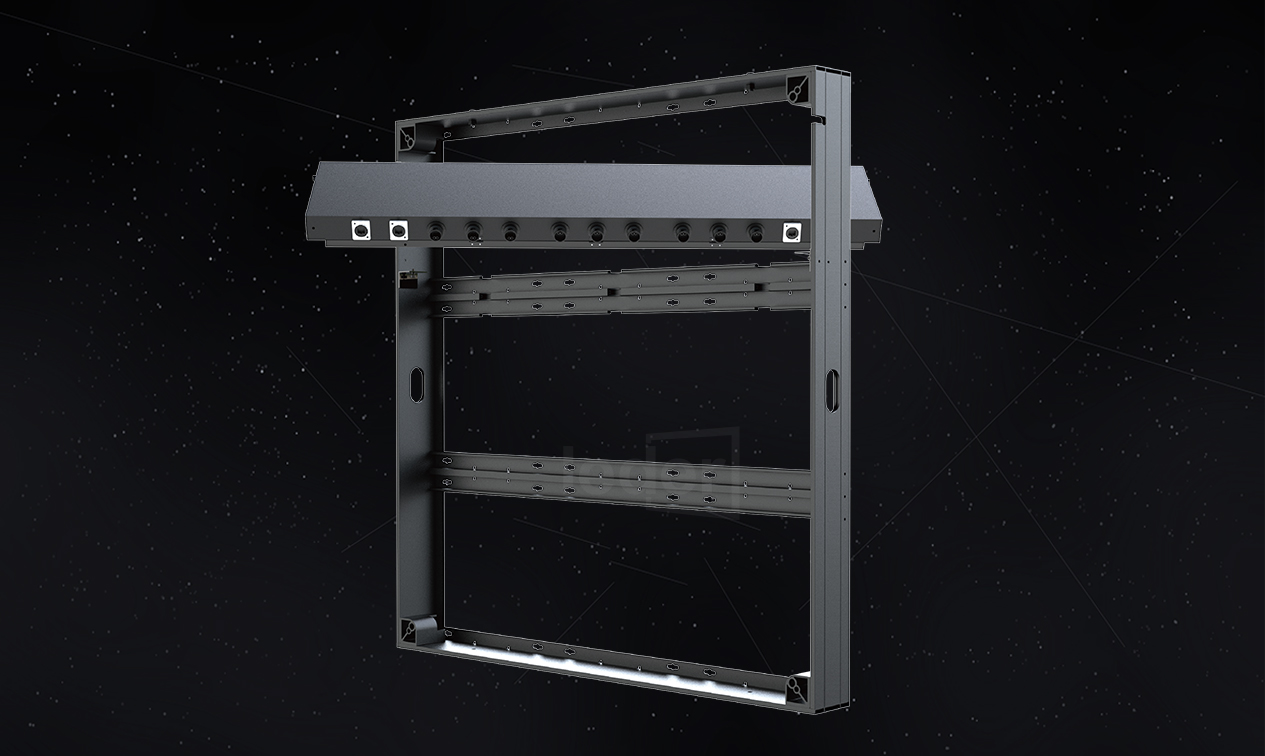

Integrated Control Box

Independent control box with integrated power supply and signal processing module,light and compact, quick maintenance.

03

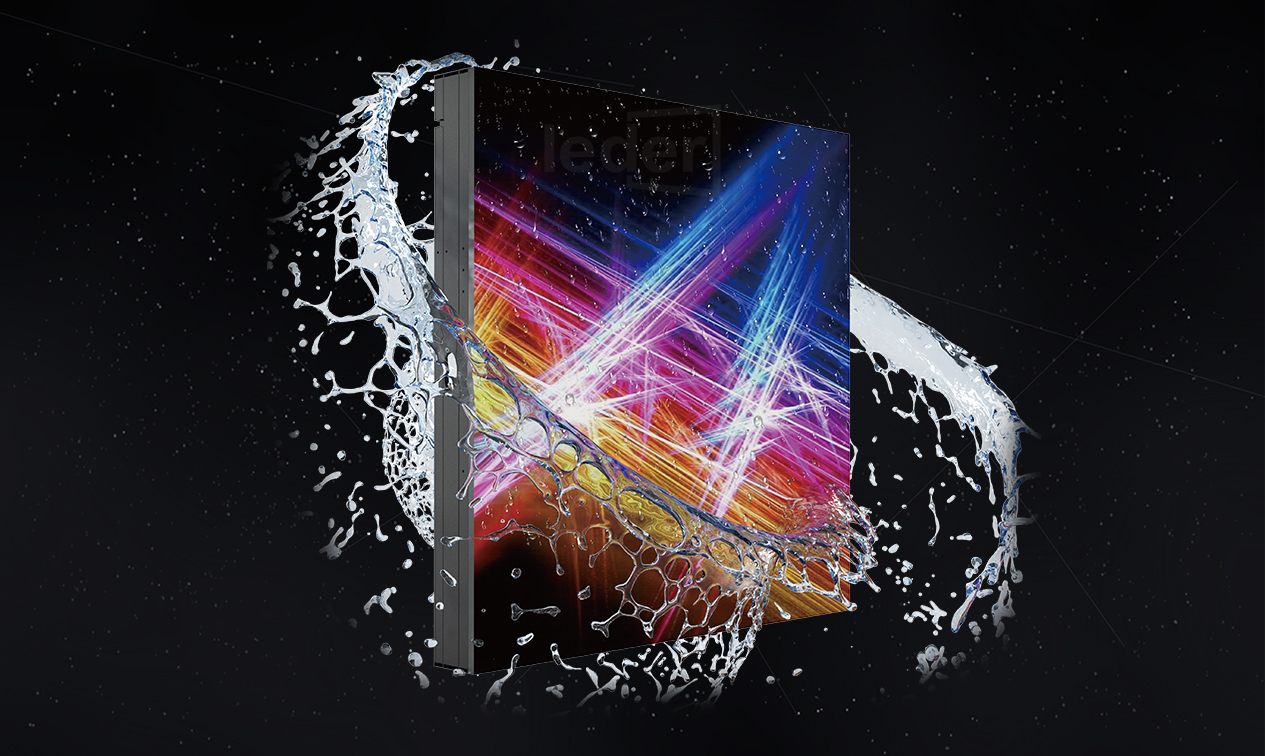

Fully sealed structure design

IP67 design,suitable for various working environments:dusty roadside, wet seashore etc., ideal outdoor product.

04

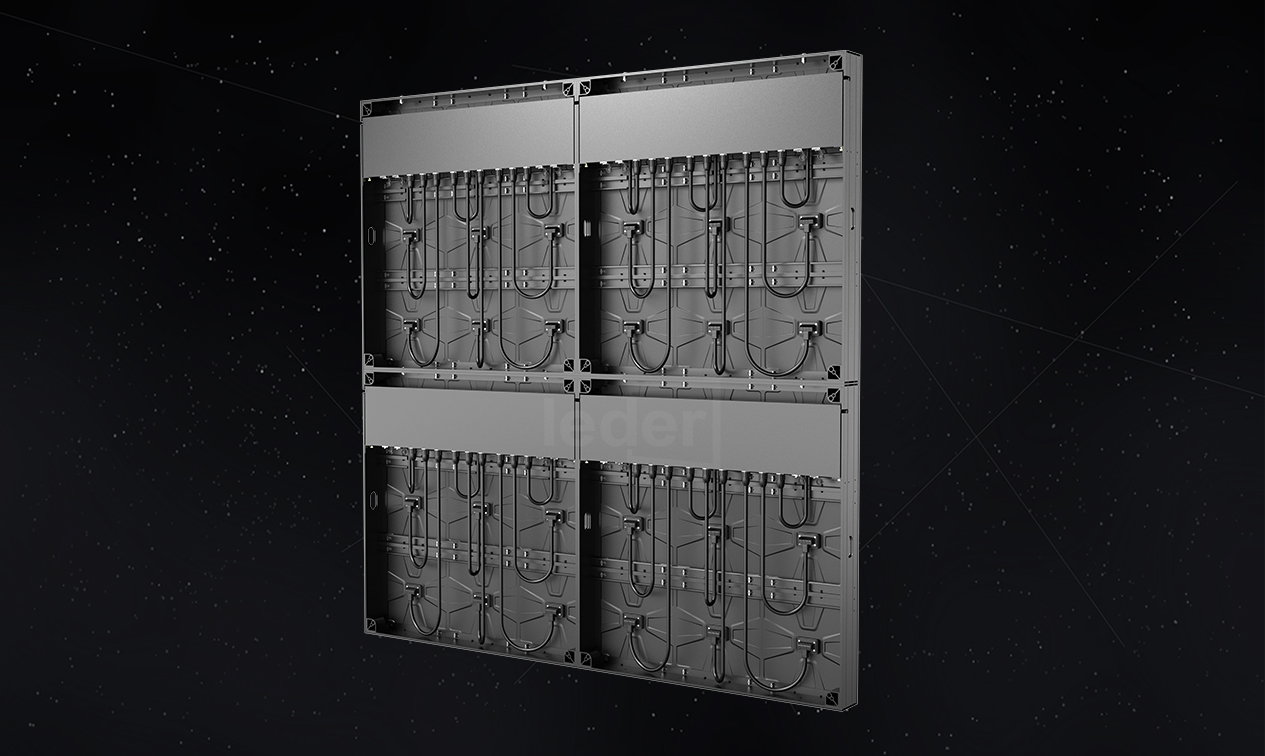

High flatness

Aluminum alloy frame is processed by CNC, flatness can be controlled within 0.5mm, flatness is far better than the traditional fabricate metal cabinet.

Parameter
ItemP6.67P8P10
Pixel Pitch 6.667mm8mm10mm
LED Type SMD2727SMD2727SMD2727
Module Resolution 48dots × 48dots40dots × 40dots32dots × 32dots
Driving Mode 1/4scan1/4scan1/2scan
Module Pixels 2,304dots1,600dots1,024dots
Module Size 320mm × 320mm320mm × 320mm320mm × 320mm
Cabinet Size 960mm × 960mm × 100mm960mm × 960mm × 100mm960mm × 960mm × 100mm
Cabinet Resolution 144dots × 144dots120dots × 120dots96dots × 96dots
Pixel Density 22,500 dots/㎡15,625dots/㎡10,000dots/㎡
Best   Viewing Distance ≥6.67m≥8m≥10m
Brightness 6,500nits or 10,000nits6,000nits or 9,000nits6,000nits or 10,000nits
IP Grade IP67
Refresh Rate 1,920Hz～3,840Hzz(depends on IC driver solution)
Gray Scale 14bits～22bits(depends   on IC driver and controller solution )
Viewing Angle H:110° / V:110°
Maximum   Power Consumption  800W/㎡
Average   Power Consumption265W/㎡
Input Voltage AC220V ～ AC110V @ 50Hz / 60Hz
Operating   Temperature ﹣20℃～65℃
Operating   Humidity10%～90%
Cabinet MaterialAluminum profile
Cabinet Weight 30kg/panel
Operating System Windows (Win7, Win10, etc.)
Signal   Source Compatibility DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.


* Depending on the configuration, the parameters are for reference only. Welcome to inquire. The final interpretation right belongs to Leder
