LRO-Y 500x1000mm (Outdoor)

Professional outdoor leasing display large screen, combined model of industrial beauty and technology beauty, the body die -casting aluminum material body, beautiful and durable, light weight, complete assembly interface, efficient maintenance, outdoor protection level, low -quality lighting cost, high -quality light core, excellent performance , Precise color, showing a perfect visual feast.

01

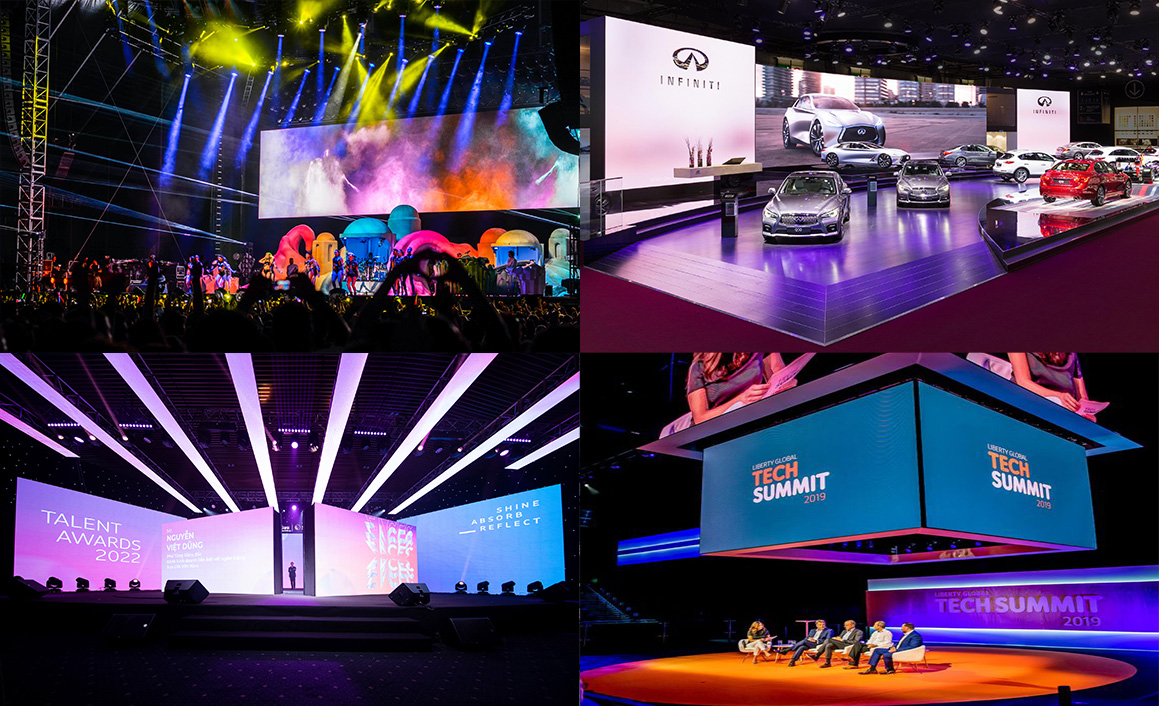

Application scenarios

Support the studio, exhibition hall, concert, conference and other application scenarios

02

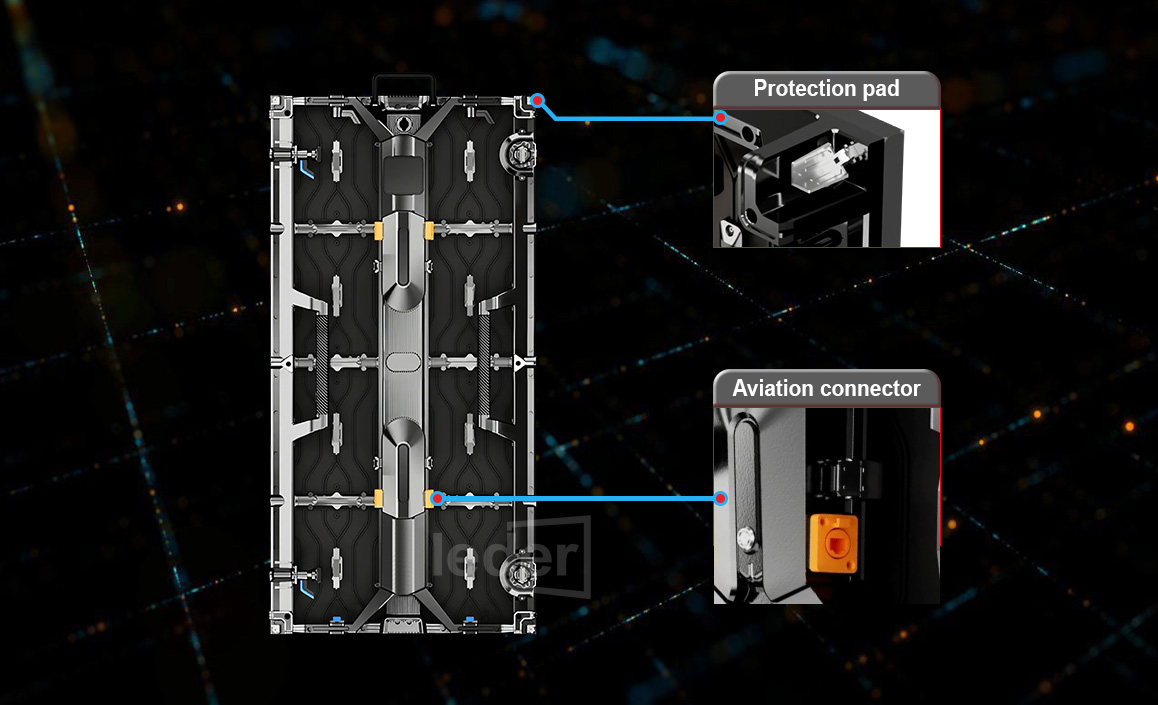

HUB connection

The whole panel adopts Hub connec-tion between module and receiver for  signal and power.

03

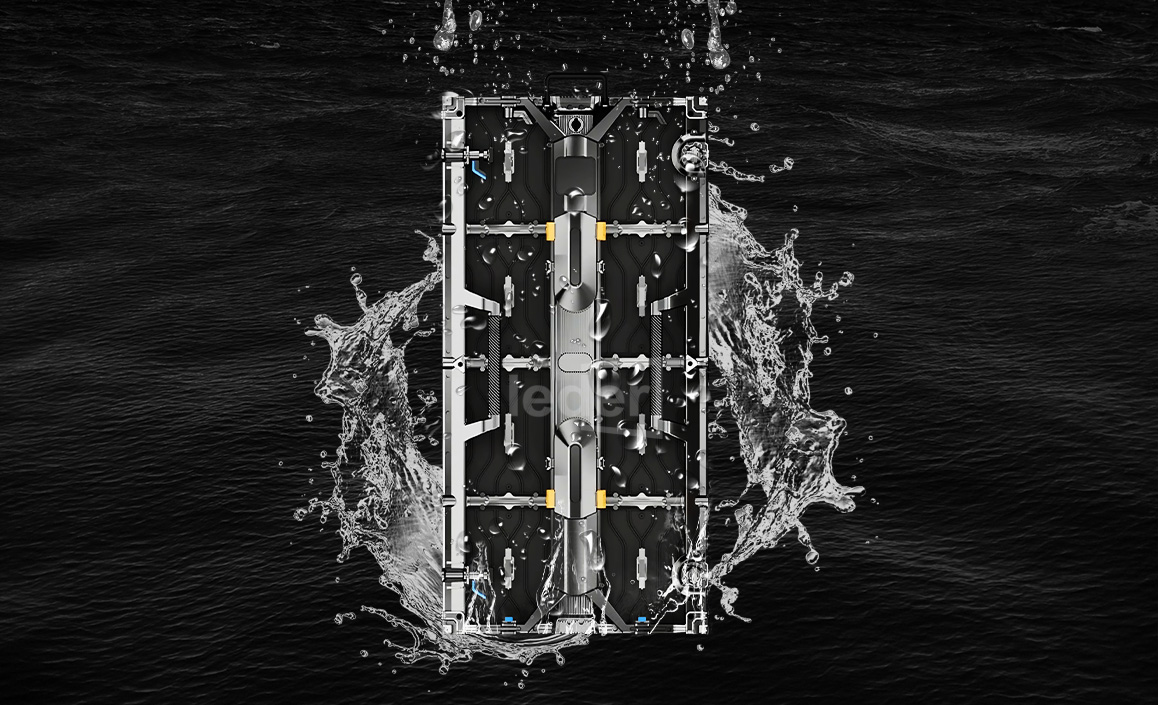

High standard outdoor protection

IP65 grade protection level, waterproof, dustproof, corrosion resistance, can greatly extend the outdoor service life of products

04

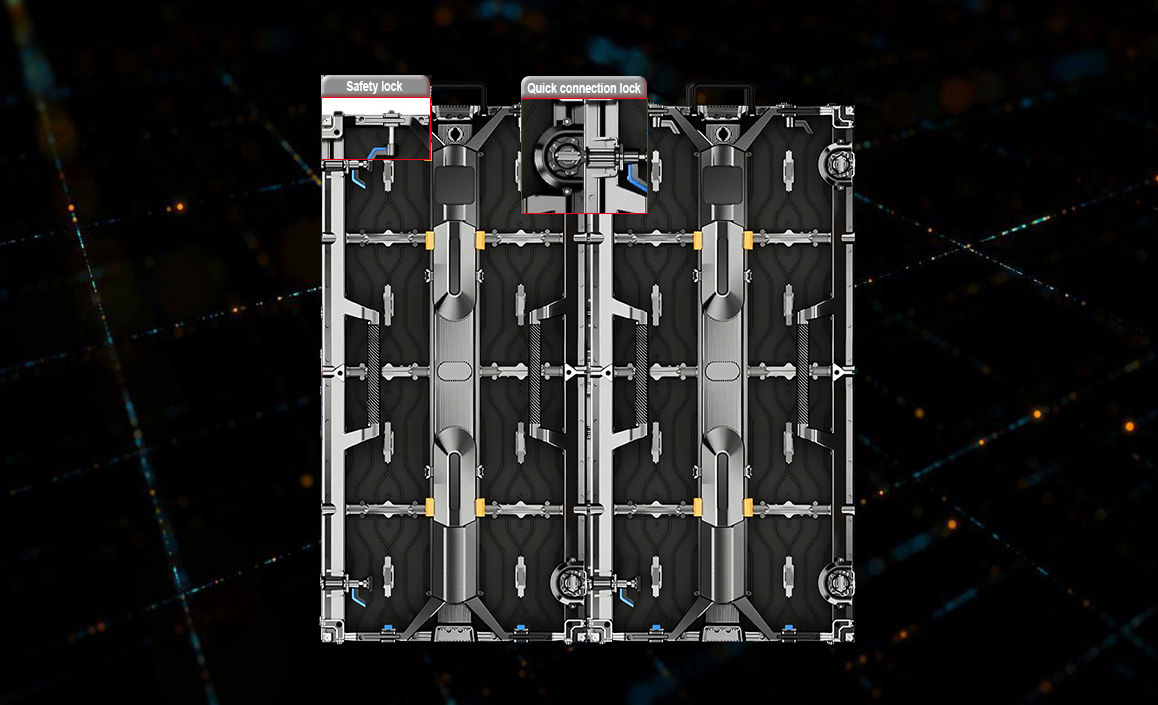

Independent quick lock, single quick installation

Support and single-person quick maintenance, the box body up and down, left and right locks can be quickly disassembled and assembled.

05

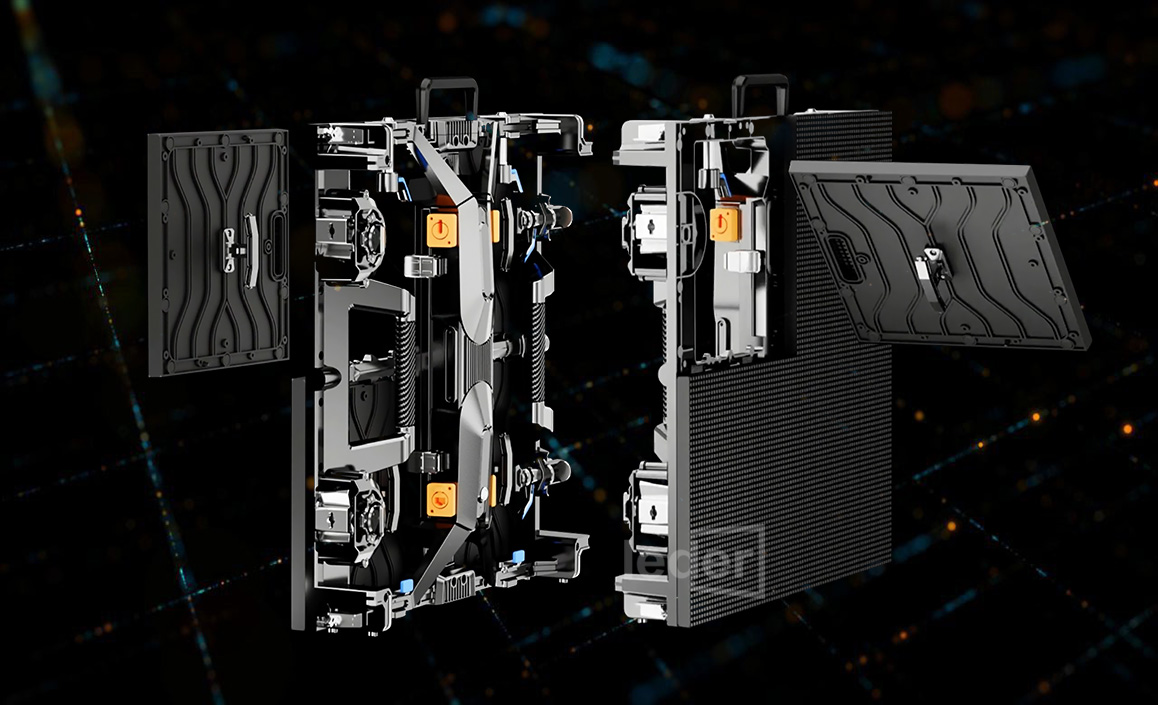

Higher security

There are lamp guard flips at the four corners of cabinet to protect modules corners and led lamps during transit.

Parameter
ItemP2.6P2.9P3.9P4.8P5.9
Pixel   Pitch 2.605mm2.976mm3.906mm4.807mm5.952mm
LED Type SMD1415SMD1415 SMD1921SMD1921SMD2727
Module   Resolution 96dots × 96dots84dots × 84dots64dots × 64dots52dots × 52dots42dots × 42dots
Driving Mode  1/ 24scan 1/ 21scan 1/16scan 1/13scan 1/7scan
Module   Pixels 9,216dots7,056dots4,096dots2,704dots1,764dots
Module   Size 250mm × 250mm
Cabinet   Size 500mm × 500mm or 500mm × 1000mm
Cabinet Resolution 500mm × 500mm 192dots × 192dots168dots × 168dots128dots × 128dots104dots ×   104dots 84dots × 84dots
Pixel   Density 147,456dots/㎡112,896dots/㎡65,536dots/㎡43,264dots/㎡28,224dots/㎡
Best Viewing Distance ≥2.6 m≥2.9 m≥3.9 m≥4.8 m≥5.9m
Brightness 5,000nits5,000nits5,000nits5,000nits5,000nits
IP Grade IP65
Refresh   Rate ＞3,840Hz
Gray   Scale 14bits～22bits(depends on   IC driver and controller solution )
Viewing   Angle H:110° / V:110°H:110° / V:110°H:110° / V:110°H:110° / V:110°H:110° / V:110°
Maximum Power Consumption  650W/㎡650W/㎡ 550W/㎡550W/㎡550W/㎡
Average Power Consumption185W/㎡185W/㎡160W/㎡160W/㎡160W/㎡
Input   Voltage AC110V～AC220V @ 50Hz / 60Hz
Operating Temperature ﹣20℃～50℃
Operating Humidity10%～90%
Cabinet   MaterialDie-casting Aluminum
Cabinet Weight  (500mm × 500mm)7.5kg/panel
Operating   System Windows (Win7, Win10, etc.)
Signal Source Compatibility DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc.


* Depending on the configuration, the parameters are for reference only. Welcome to inquire. The final interpretation right belongs to Leder
