Products Stadium LED Sign
Feature Parameter
▪ Stadium Series

Video

Stadium Series

Our LSP stadium LED screen meets the UEFA standard,adopted integrated die-casting aluminum design,high strength, high precision, strong durability, excellent environmental compatibility,Stable and powerful performance, transparent and bright color display, high image quality and fidelity.

01

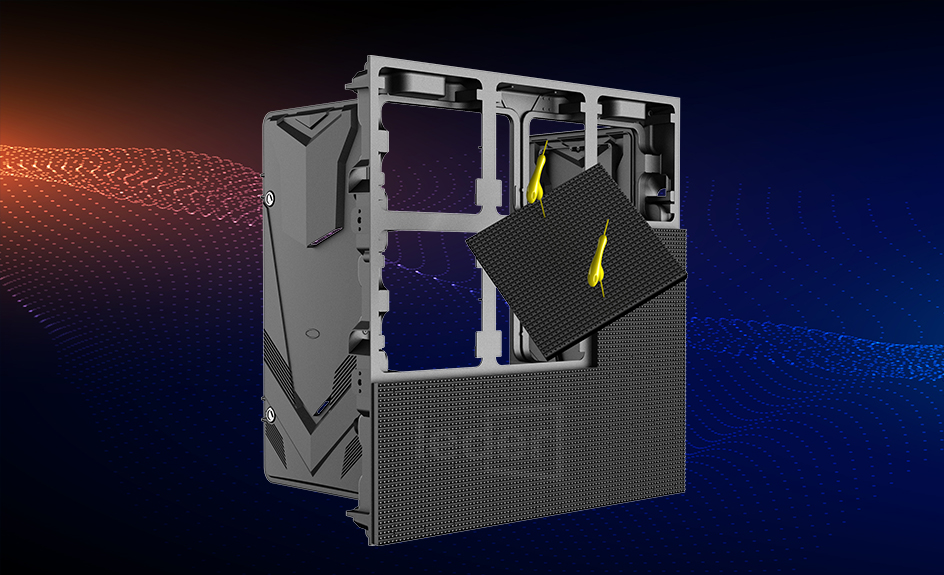

Special design module support both

Easier and faster for assembly and dismantle. Save cost for installation and maintenance.

02

IP65 level protection guarantee

Stadium led screen adopts high quality conformal coating, so the component is effectively moisture-proof and dust-proof. Therefore, the screen can be used in severe indoor and outdoor environment.

03

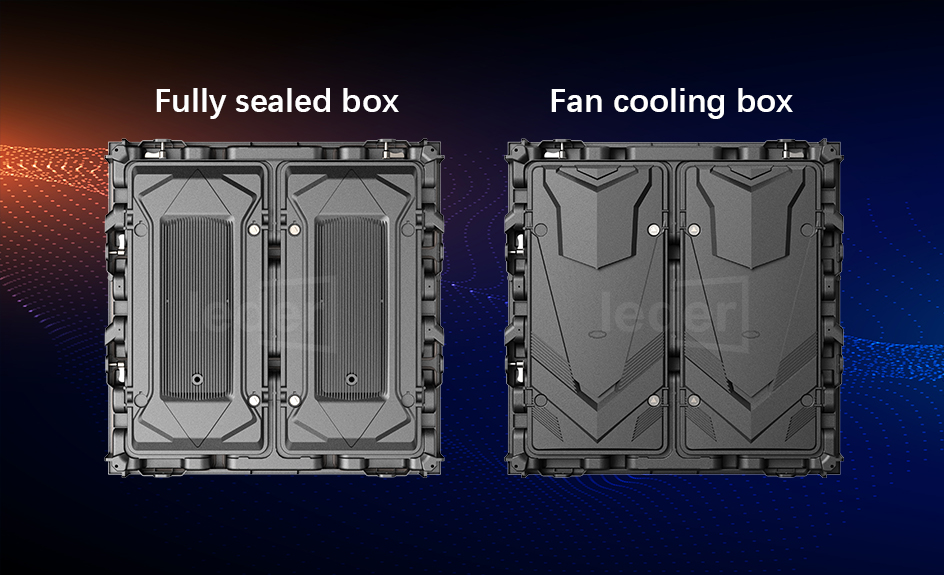

Greater environmental compatibility

Provide fully sealed box and strong heat dissipation box to meet the needs of customers in different differentiated application scenarios.

04

Support Stadium Sports Kit

LSP Led screen has soft plastic mask to protect the players from injury when they hit the screen in the stadium by accident. It has a back supporting stand for adjusting the screen to different viewing angle.


05

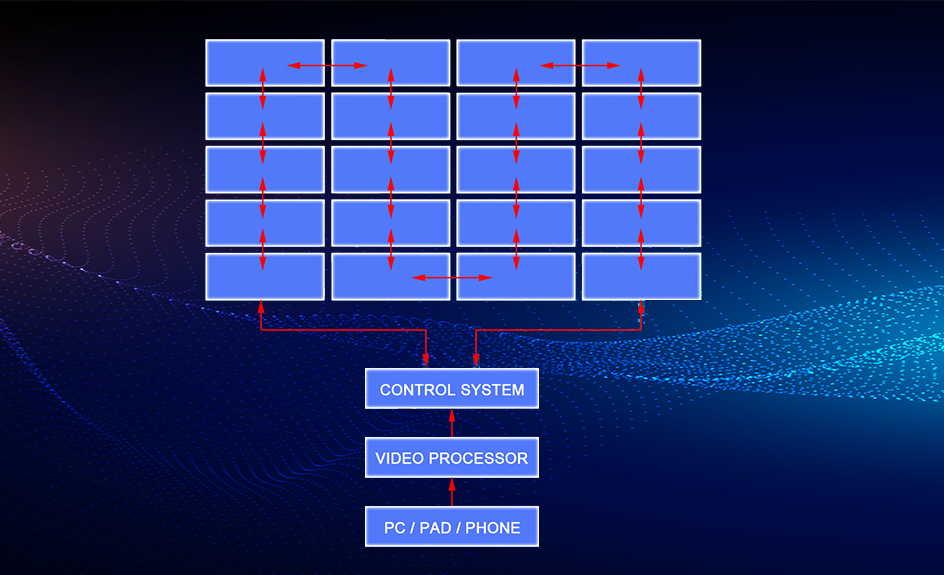

Power supply, signal double backup

Power supply, signal transmission dual backup system, dual channel free transmission, even if there is a line failure, it can ensure the normal picture.

06

High refresh rate

1,920Hz～3,840Hz ultra-high refresh rate, smooth picture, no afterimage when taking pictures, and comfortable viewing experience.

Parameter
ItemP6.67P8P10
Pixel   Pitch(mm)P6.67P8P10
Pixel   Desity/m222,500dots15,625dots10,000dots
LED TypeSMD2727SMD2727SMD2727
Module   Size320mm×160mm320mm×160mm320mm×160mm
Cabinet   Size960mm×960mm960mm×960mm960mm×960mm
Maintenance   WayRearRearRear
Brightness6000nits~8000nits6500nits~8000nits6500nits~10000nits
Scan   Mode1/61/41/2
Gray   Scale16bit16bit16bit
Viewing   Angle120°/120°120°/120°120°/120°
Input   VoltageAC110V/240V
Lifespan≥100,000hrs
MTBF＞10,000hrs
IP Grade IP65
Operating Temperature ﹣20℃～50℃
Operating Humidity10%～90%

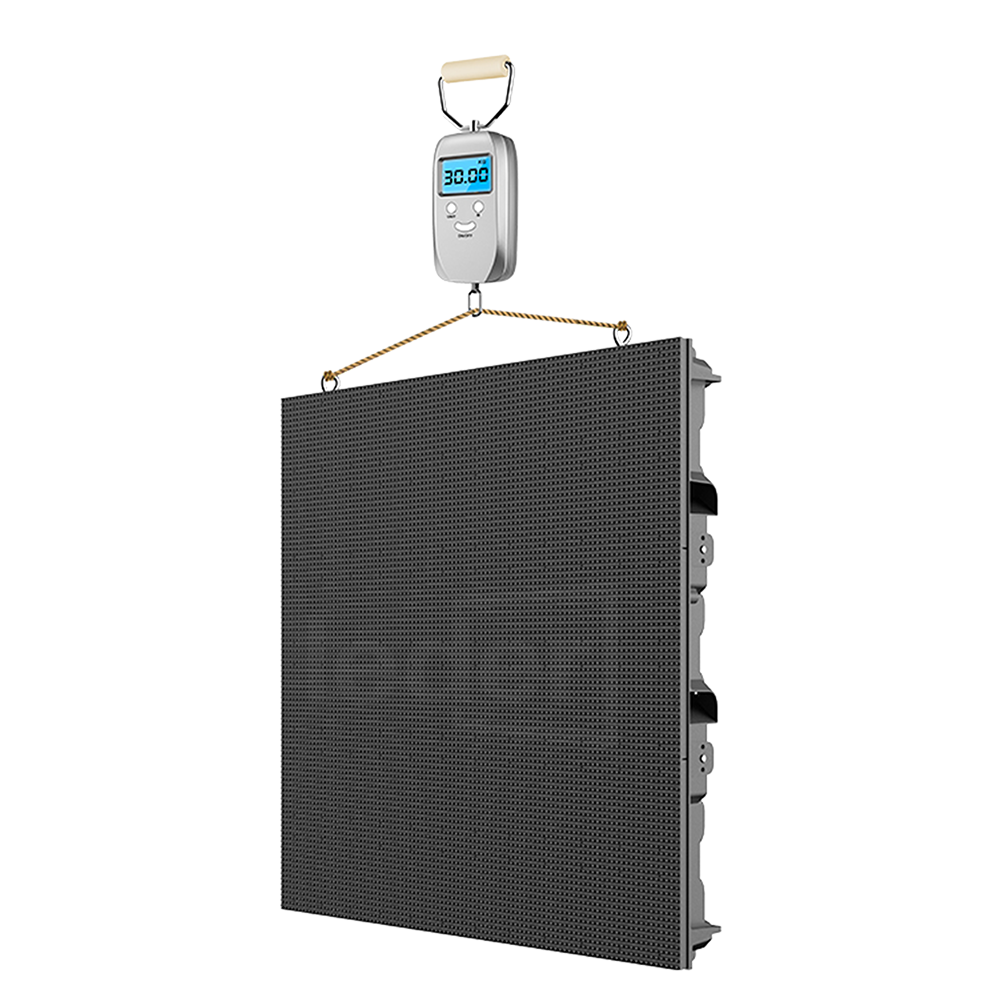

Cabinet   Weight30kgs
Cabinet   MaterialDie cast alu
Operating System Windows (Win7, Win10, etc.)
Signal Source   Compatibility DVI, HDMI 1.3, DP 1.2, SDI, HDMI 2.0, etc.


* Depending on the configuration, the parameters are for reference only. Welcome to inquire. The final interpretation right belongs to Leder
