LFA Series
LFA outdoor display, small-size and lightweight
modular cabinet. Integrated with power supply,
receiving card. IP67 protection,high brightness,
high refresh rate, low failure rate, high efficiency
and energy saving, good display effect, stable
operation in all weather outdoor applications.

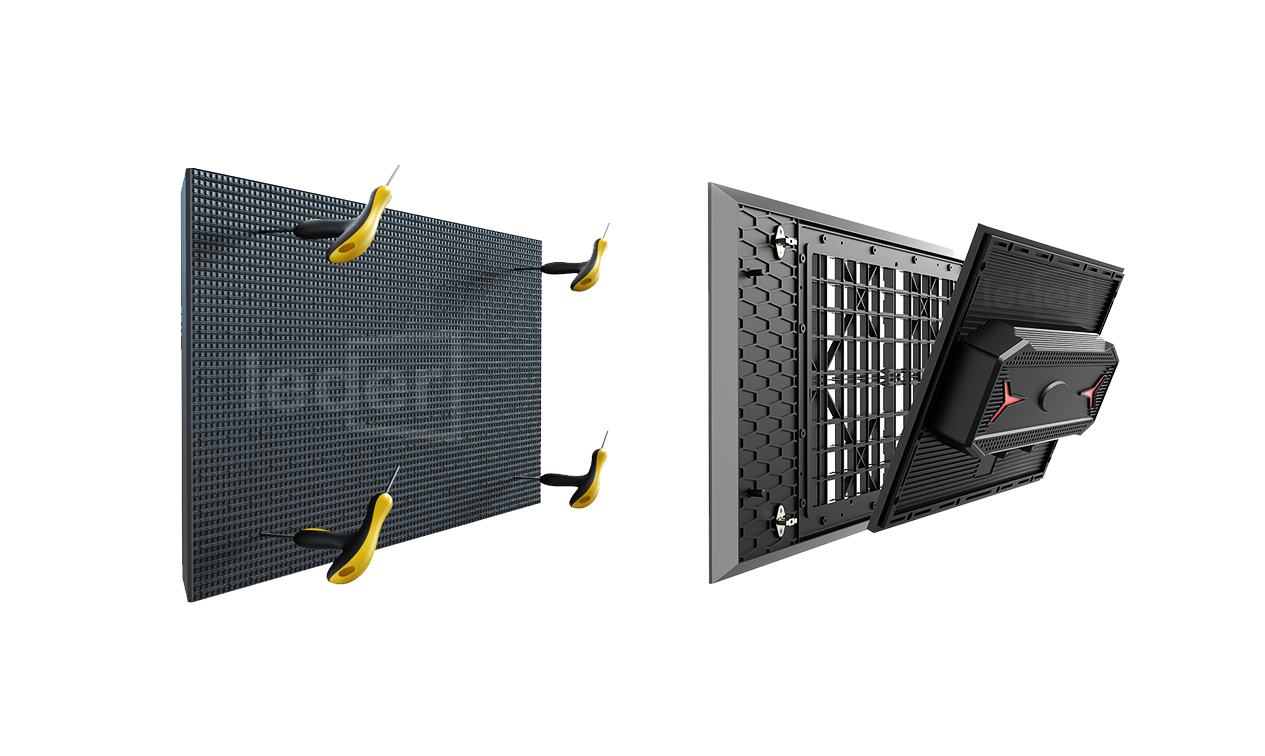

Front/back dual service
Quick removable from front or
back,easy for maintenance.

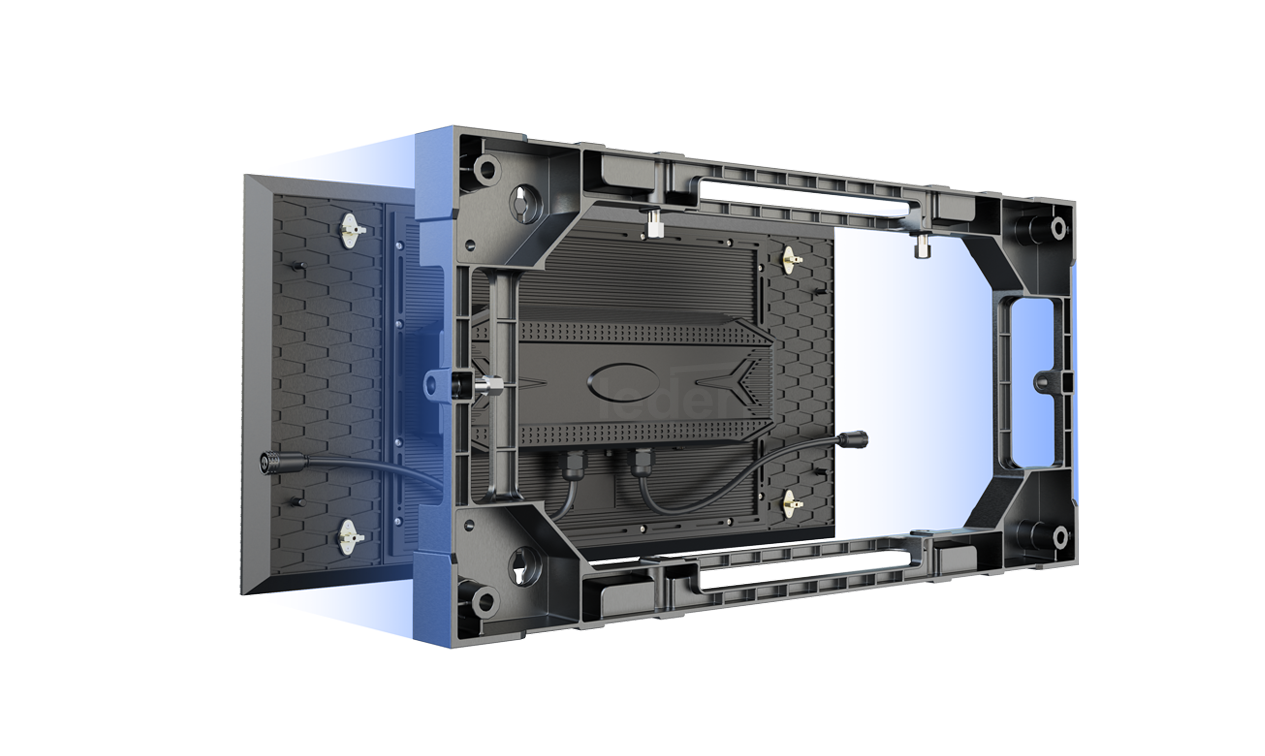

Modular design
Cabinet,control box and installation frame
are unified modular design.Easy and flexible
assemble, excellent screen creativity.

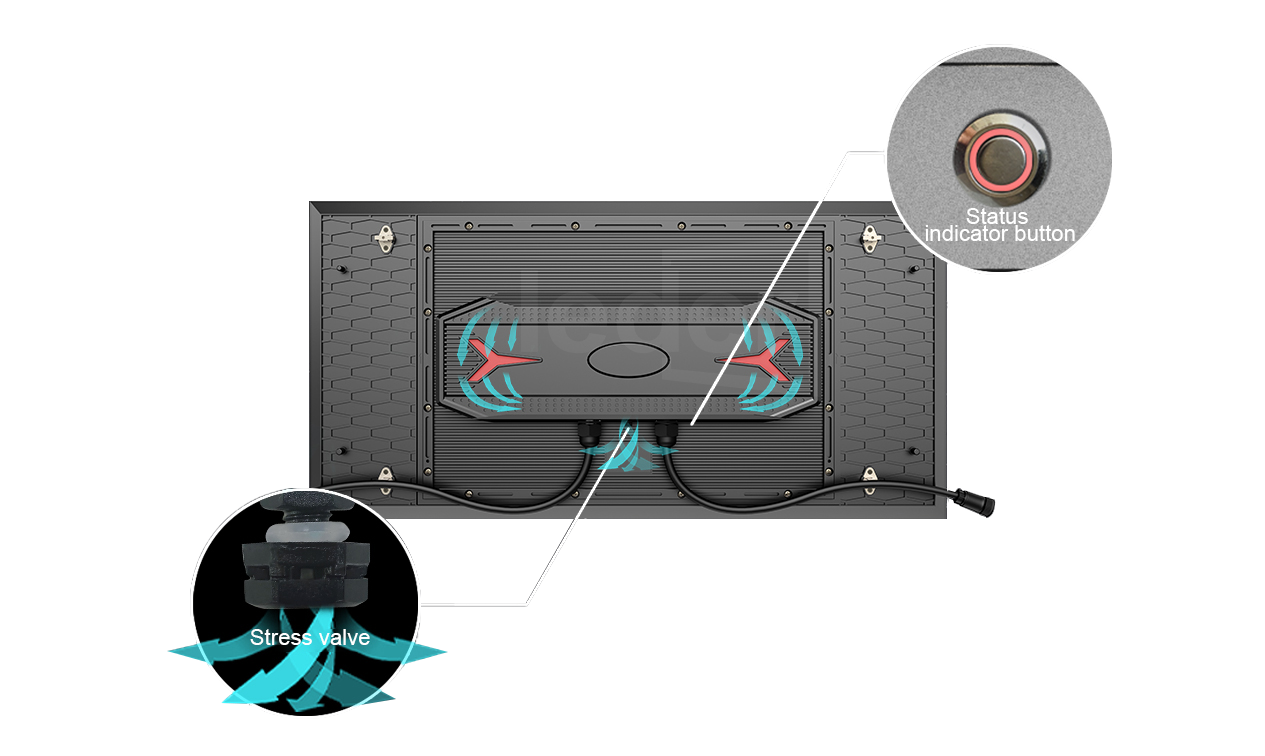

Mature cabinet guarantee mechanism
Air valve design to balance the air pressure in the cabinet.
Working status indication button to monitor the working status of the box at any time.

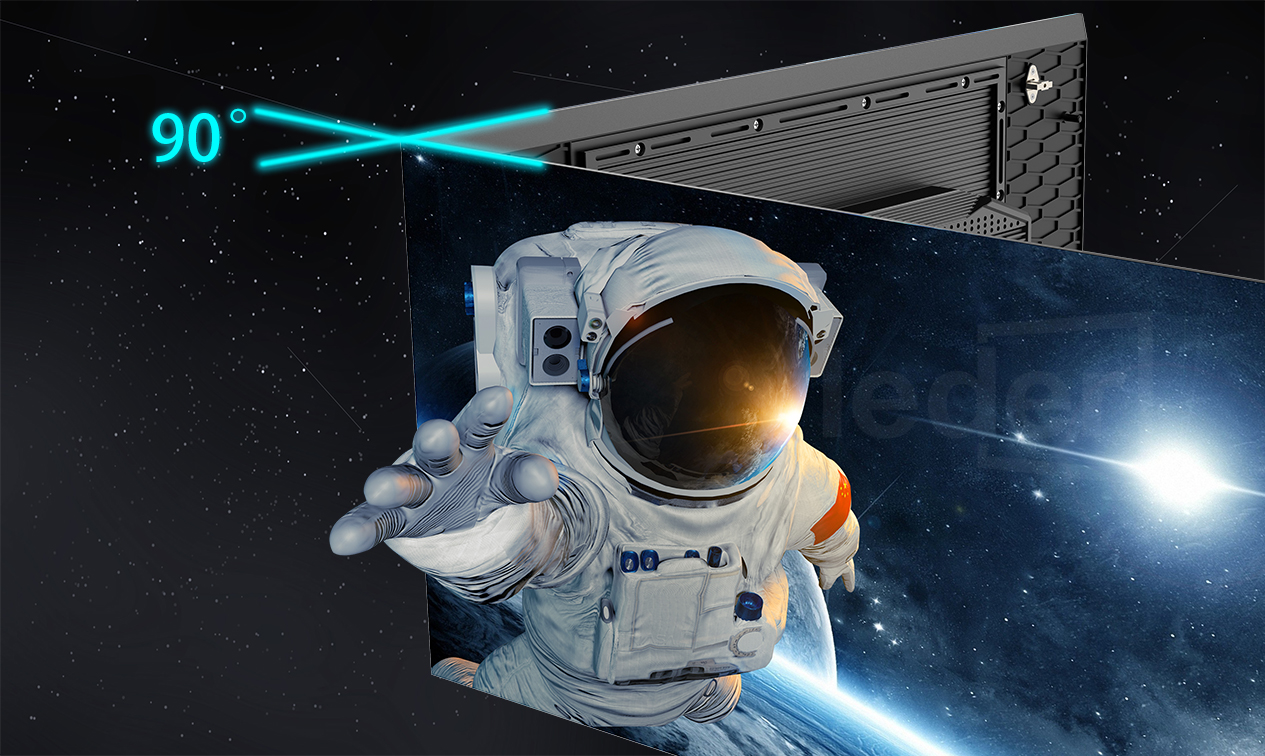

45°corner,support 90°~180°large corner
45° chamfered angle design of the cabinet edge,
support all kinds of large corner projects,3D
screen, square screen, curved creen etc.

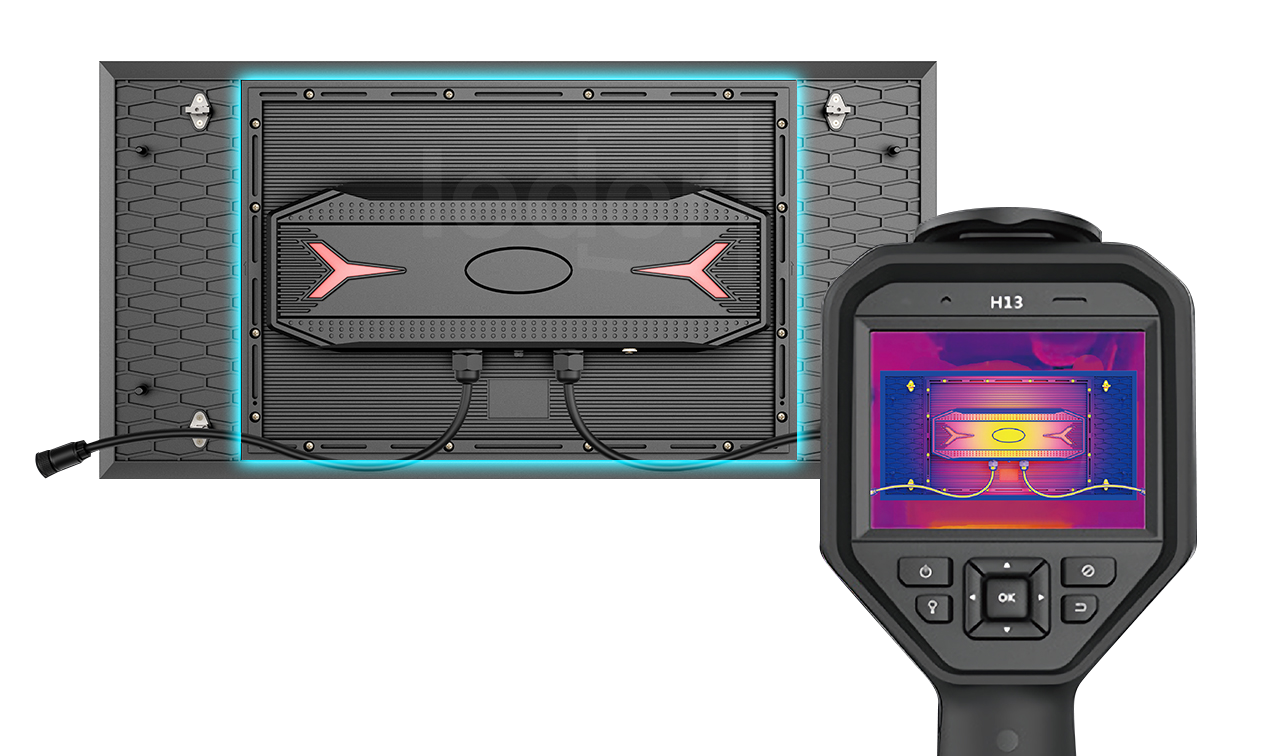

Die-casting alloy back-plate heat dissipation
Large area of die-casting alloy on the back of
cabinet uniform heat distribution,and expedite
heat dissipation,working is more stable.

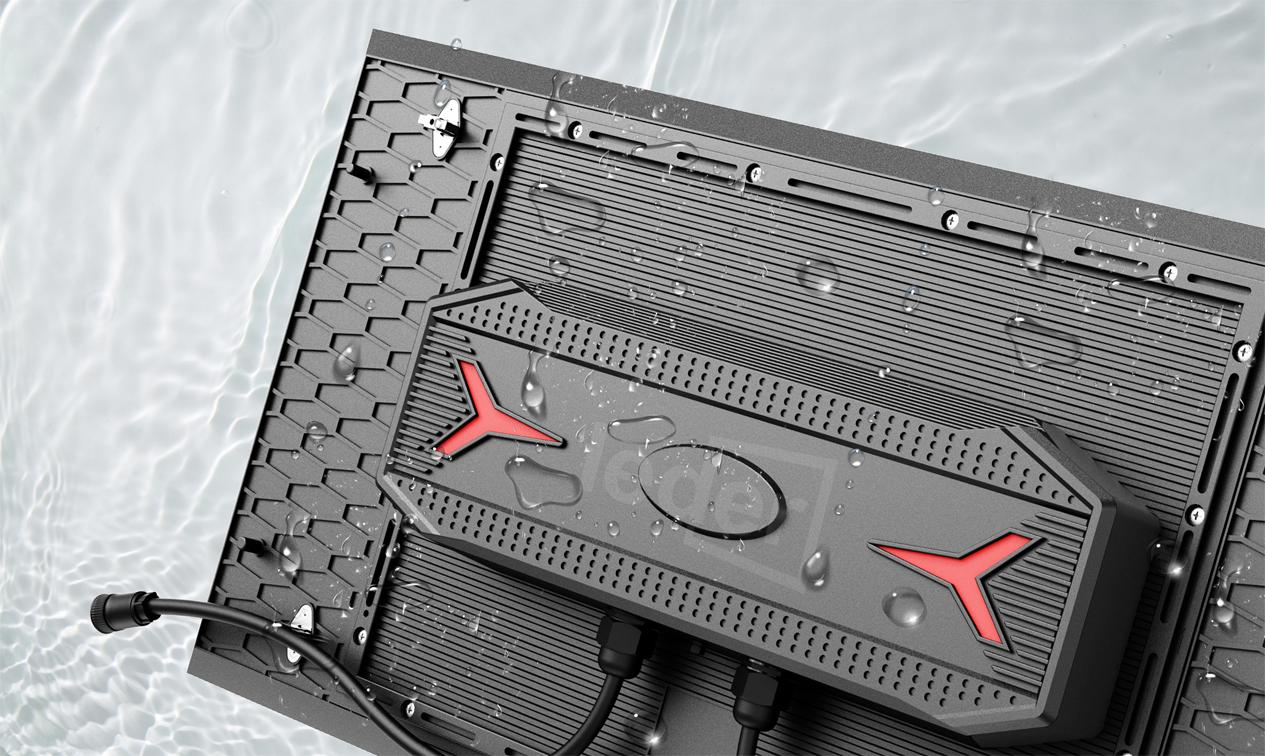

Fully sealed structure design
IP67 design,suitable for various working
environments:dusty roadside, wet seashore
etc., ideal outdoor product.
| Item | P4.76 | P6.35 | P9.52 |
| Pixel Pitch | 4.7625mm | 6.35mm | 9.525mm |
| LED Type | SMD1921 | SMD2727 | SMD2727 |
| Module Resolution | 128dots x 64dots | 96dots x 48dots | 64dots x 32dots |
| Driving Mode | 1/8scan | 1/6scan | 1/2scan |
| Module Pixels | 8,192dots | 4,608dots | 2,048dots |
| Module Size | 2′ x 1′ | ||

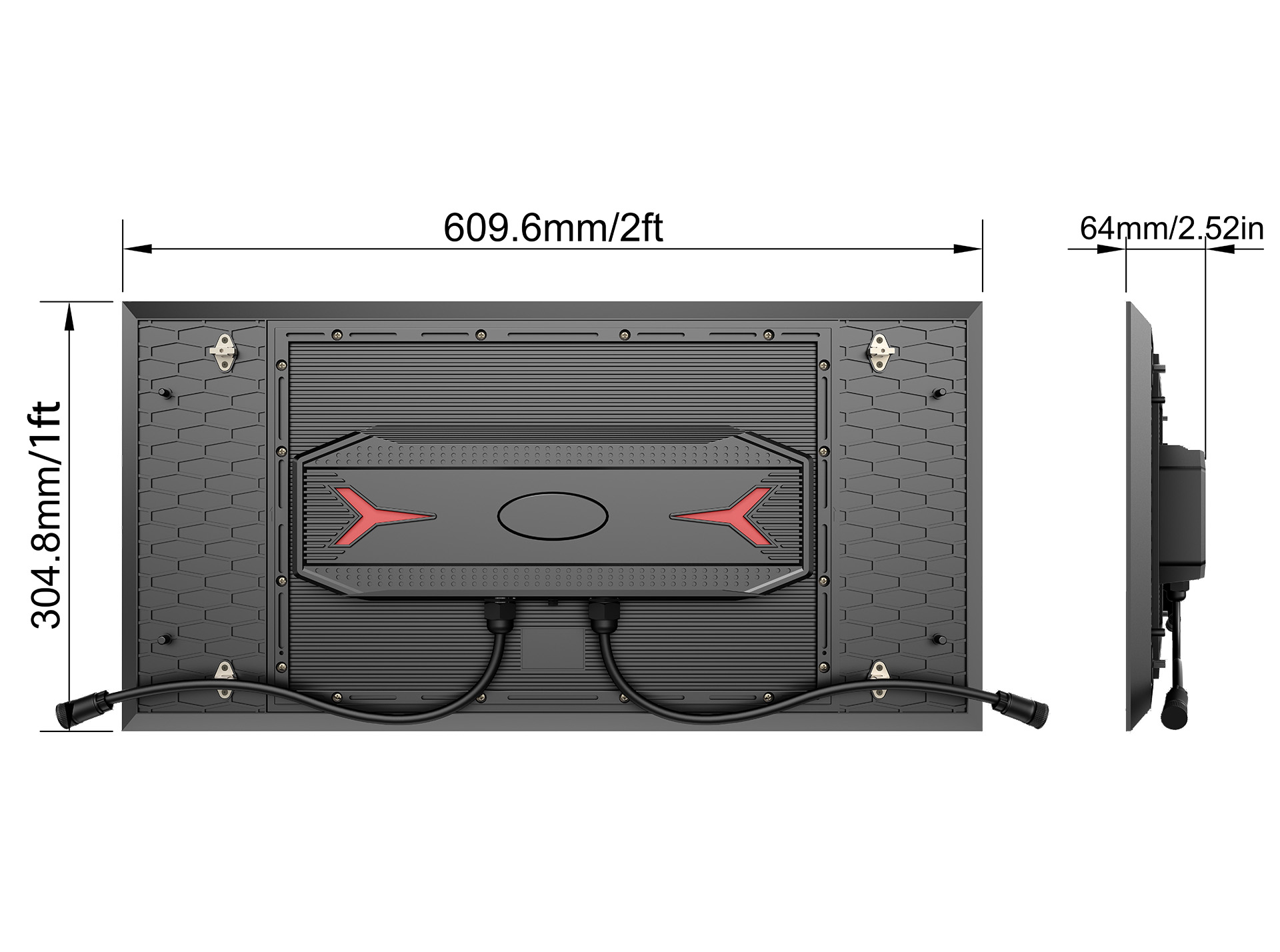

| Cabinet Size | 2′ x 1′ | ||
| Cabinet Resolution | 128dots x 64dots | 96dots x 48dots | 64dots x 32dots |
| Pixel Density | 44,088dots/m² | 24,800dots/m² | 11,022dots/m² |
| Best Viewing Distance | ≥4.7 m | ≥6.3 m | ≥9.5 m |
| Brightness | 6,000nits / 9,000nits | 6,000nits / 9,000nits | 6,000nits / 10,000nits |
| IP Grade | IP67 | ||
| Refresh Rate | 3,840Hz | ||
| Gray Scale | 16bits | ||
| Viewing Angle | H:110° / V:110° | ||
| Maximum Power Consumption | 750W/m² | 600W/m² | 600W/m² |
| Average Power Consumption | 215W/m² | 180W/m² | 180W/m² |
| Input Voltage | AC110V - AC220V @ 50Hz/60Hz | ||
| Operating Temperature | ﹣20℃～50℃ | ||
| Operating Humidity | 10%～90% | ||
| Cabinet Material | Die-casting Aluminum | ||

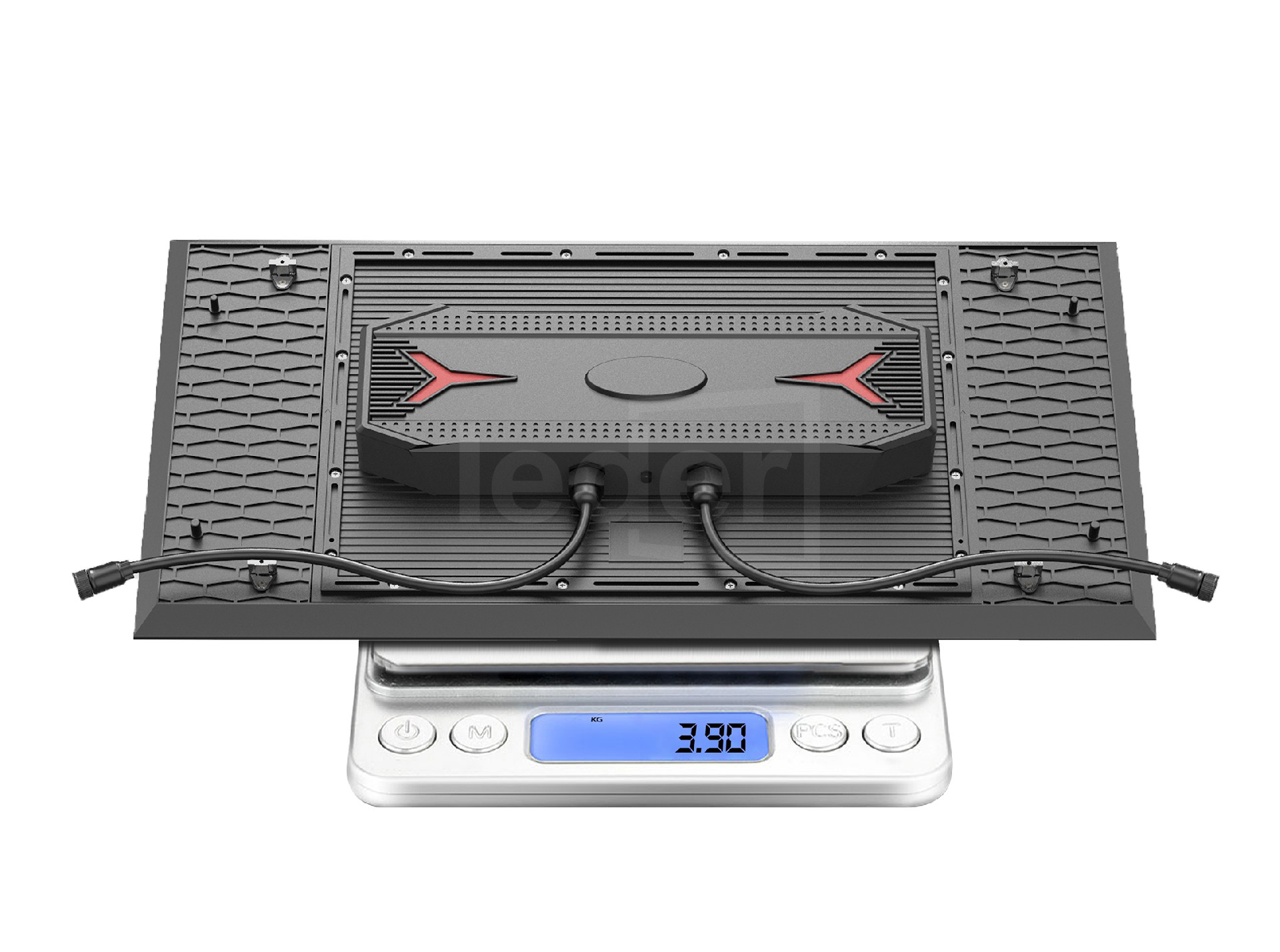

| Cabinet Weight | 3.9kg | 3.9kg | 3.8kg |
| Operating System | Windows (Win7, Win10 etc.) | ||
| Signal Source Compatibility | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. | ||
