Advance Plus Series

Advance Plus Series indoor displays feature a large size and high-precision die-cast design, ensuring exceptional flatness and durability. With front-maintenance magnetic modules for easy upkeep, they also support multi-size splicing, making them adaptable for various indoor environments

01

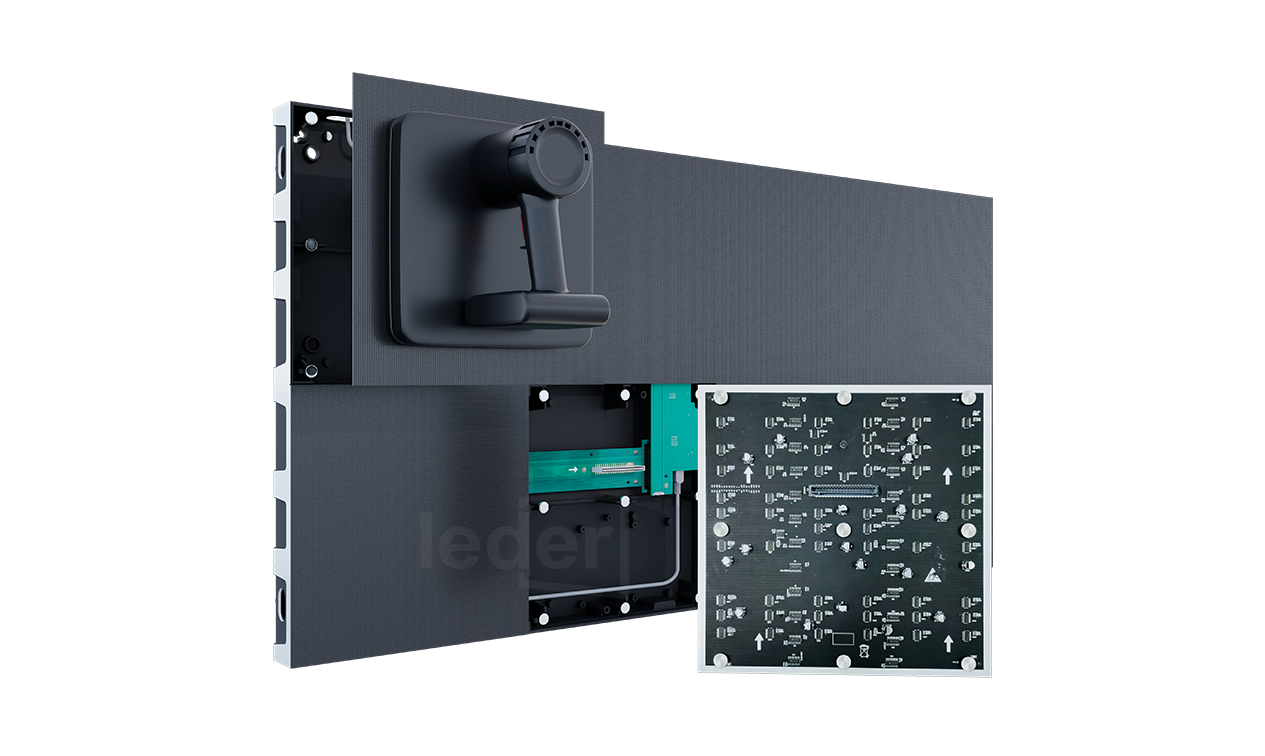

Front maintenance

The module uses high-quality PCB boards and is equipped with front maintenance magnets

02

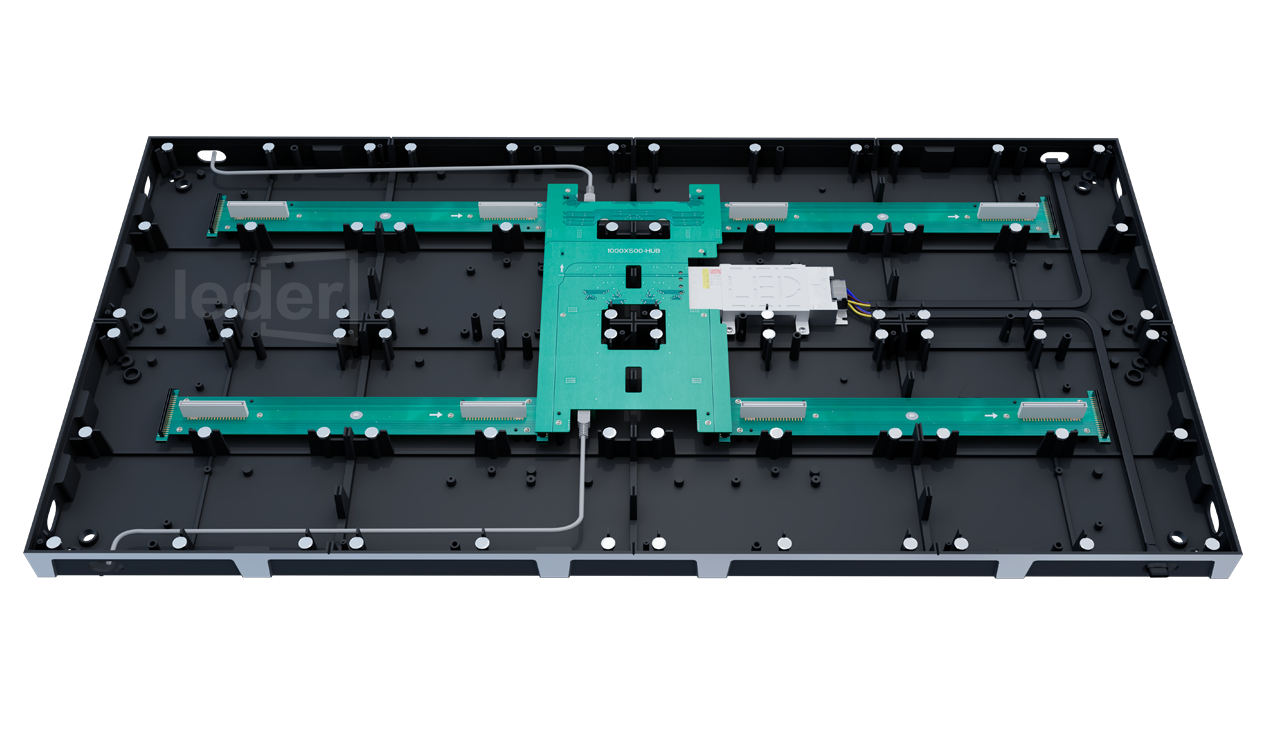

HUB connection,
clean box structure

Uses HUB connection for low failure rates
and easy installation and maintenance

03

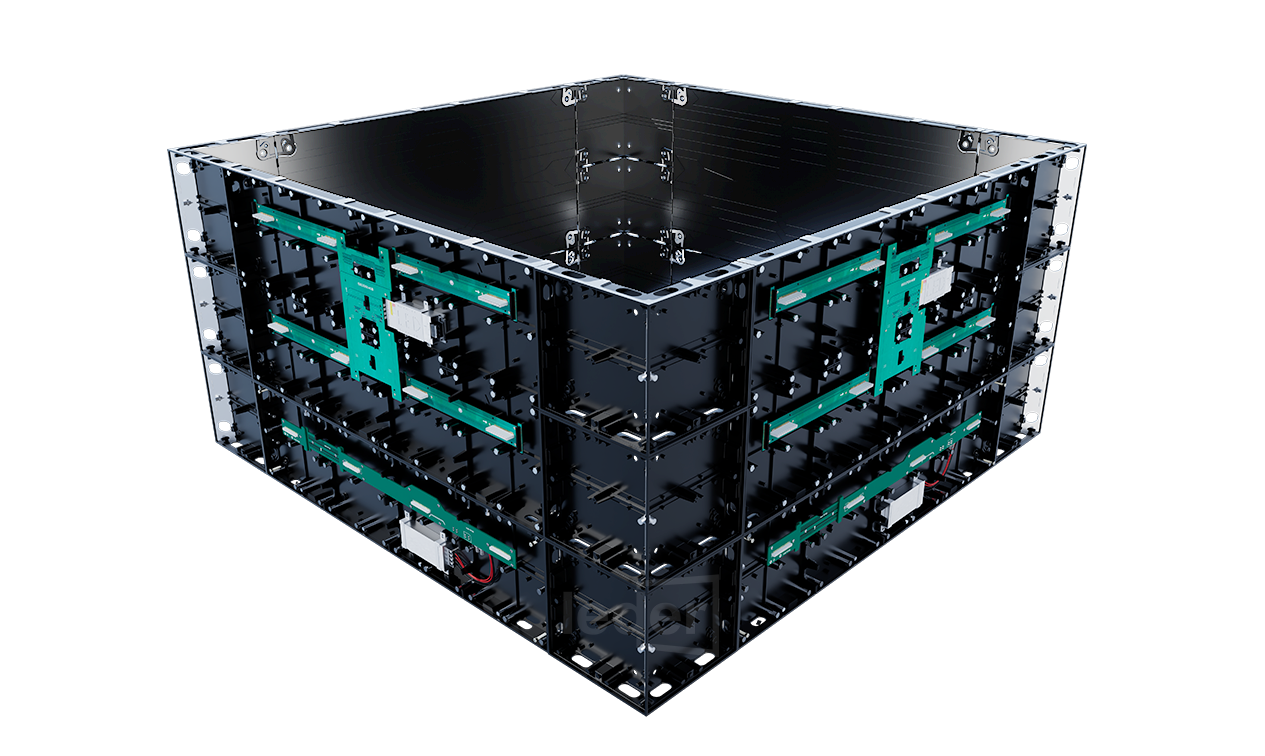

Rectangular splicing

Compatible with 250x250 module units, enabling 90-degree angles and 3D visual effects

04

High precision plane

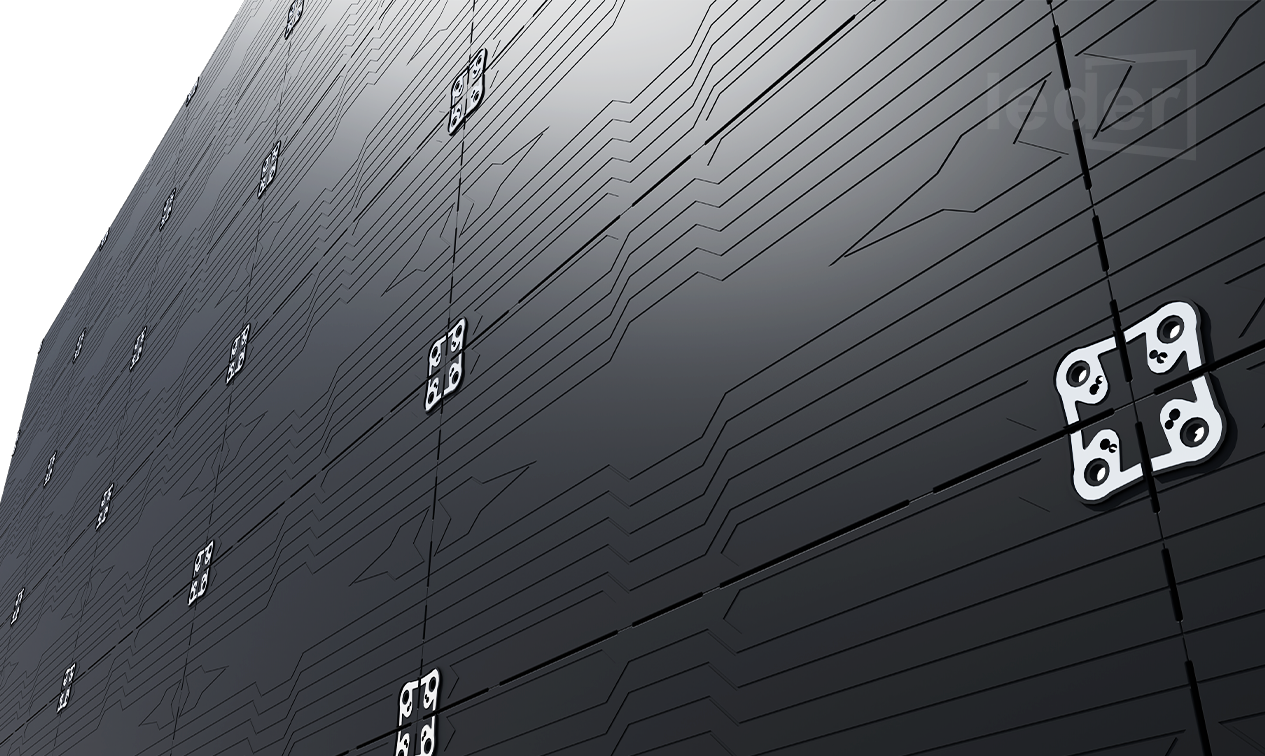

Die-cast aluminum cabinet design, higher precision, better flatness.

Parameter
ItemP1.56P1.95P2.5P2.6P2.97P3.91
Pixel   Pitch1.5625mm
1.953mm2.5mm2.604mm2.976mm3.906mm
LED TypeSMD1212SMD1515SMD1515SMD1515SMD2020SMD2020
Module   Resolution160dots x 160dots128dots x 128dots100dots x 100dots96dots x 96dots84dots x 84dots64dots x  64dots
Driving   Mode1/40scan1/32scan1/50scan or 1/25scan1/32scan1/28scan1/16scan
Module   Pixels25,600dots16,384dots10,000dots9,216dots7,056dots4,096dots
Module   Size250mm x 250mm

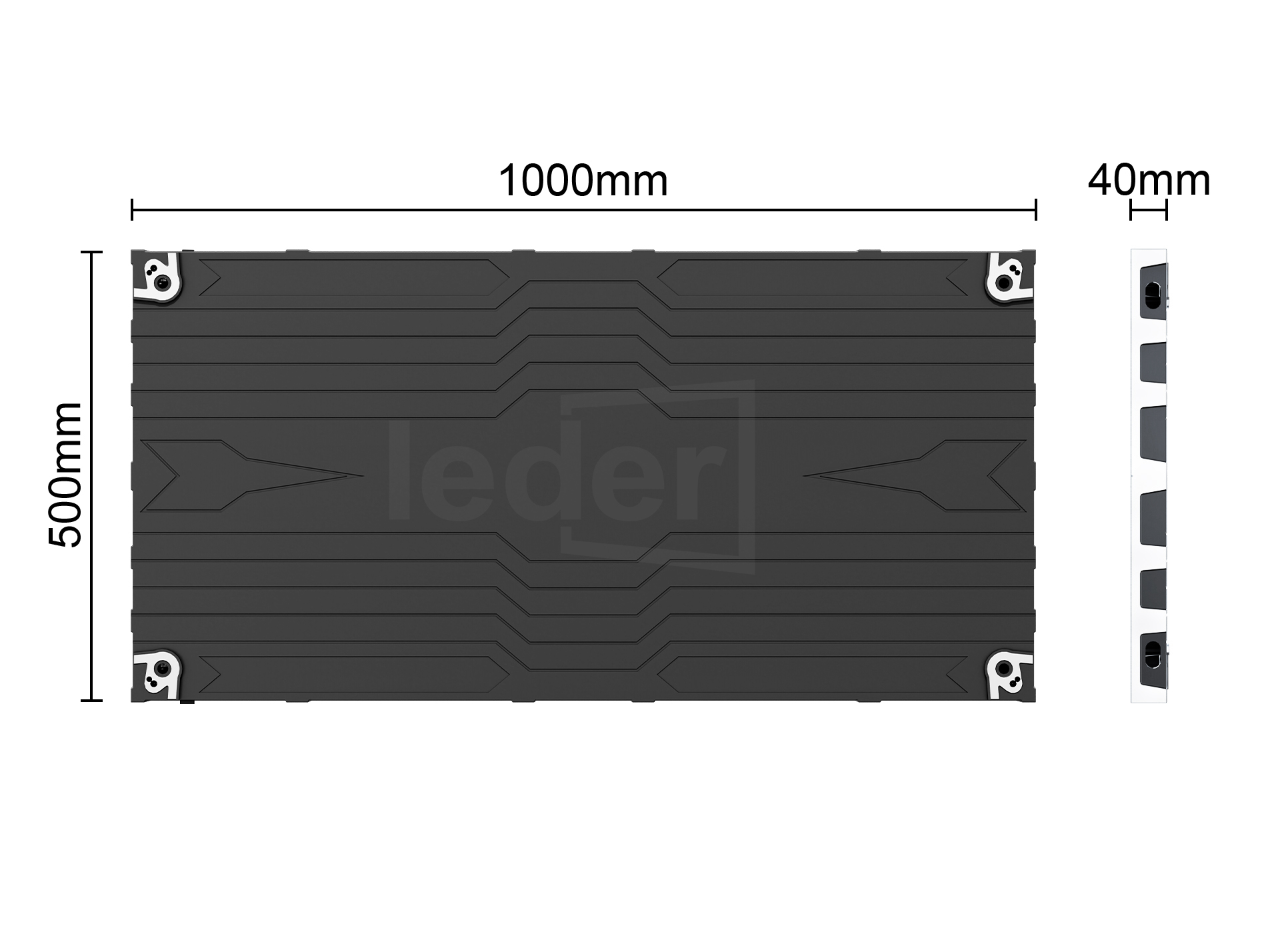

Cabinet   Size1,000mm x 500mm(1,000mm x 250mm or 750mm x 250mm or 250mm x 250mm)
Cabinet   Resolution (1000mm x 500mm)640dots x 320dots512dots x 256dots400dots x 200dots384dots x 192dots336dots x 168dots256dots x 128dots
Pixel   Density409,600
262,144
160,000147,456112,89665,536
Best   Viewing Distance≥1.5m≥1.9m≥2.5m≥2.6m≥2.9m≥3.9m
Brightness500nits/3,500nits800nits/3,500nits600nits or
1,200nits/3,500nits		800nits/3,500nits800nits/3,500nits800nits/3,500nits
IP GradeIP43
Refresh   Rate3,840HZ
Gray   Scale14bits~22bits
Viewing   AngleH:110° / V:110°
Maximum   Power Consumption500W/㎡500W/㎡500W/㎡450W/㎡350W/㎡300W/㎡
Average   Power Consumption160W/㎡160W/㎡160W/㎡150W/㎡115W/㎡100W/㎡
Screen   Lifespan≥100,000 hours
Input   VoltageAC110V   - AC220V @ 50Hz/60Hz
Operating   Temperature﹣20℃～50℃
Operating   Humidity10%～90%
Cabinet   MaterialDie-casting   Aluminum

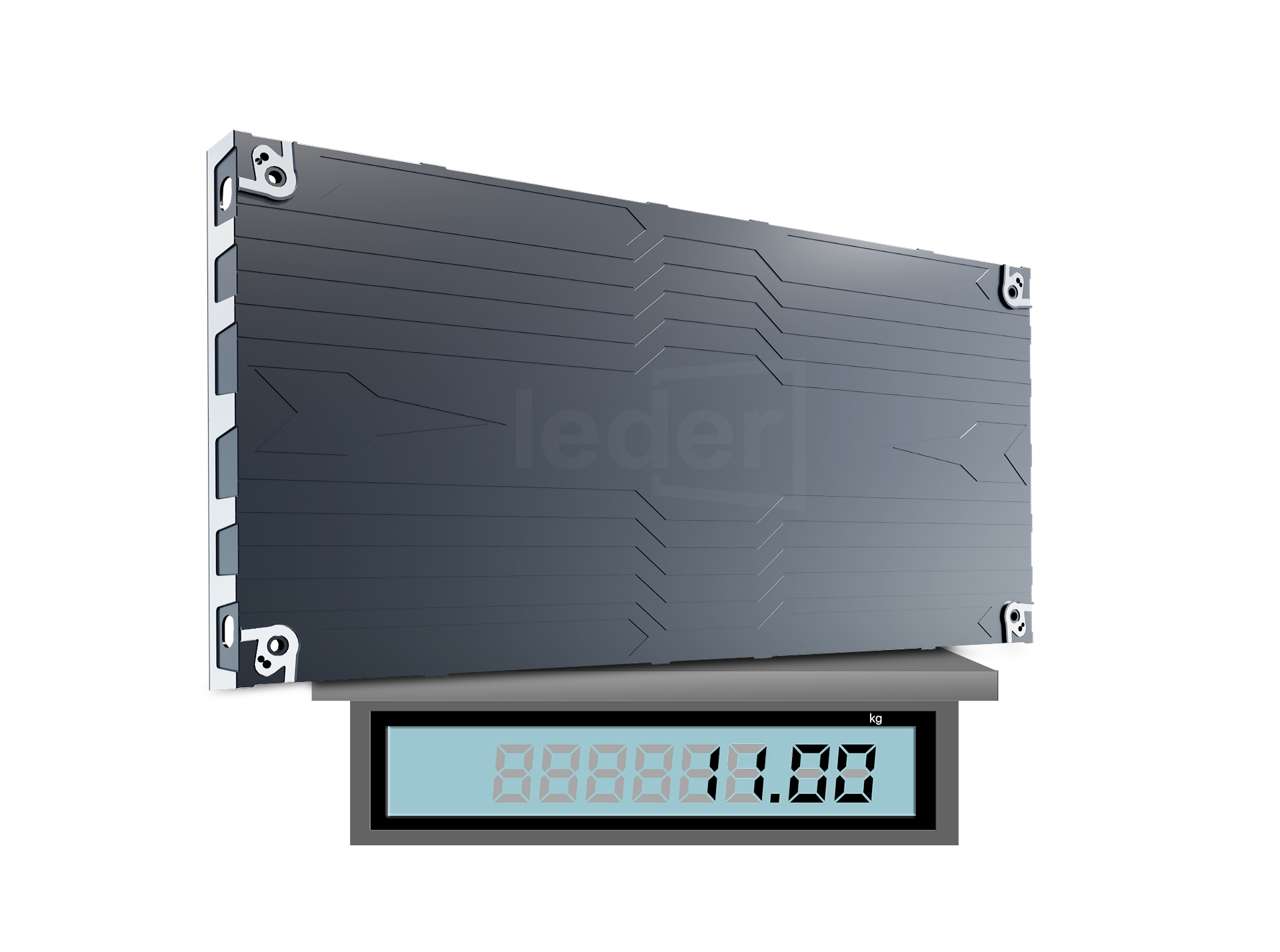

Cabinet   Weight11kg/panel10.6kg/panel10.4kg/panel
Operating   SystemWindows   (Win7, Win10, etc.)
Signal   Source Compatibility

DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc.


* Depending on the configuration, the parameters are for reference only. Welcome to inquire. The final interpretation right belongs to Leder
