Advance Series
1.Diversified product line
2.Quick installation
3.Lightweight and stylish, alloy quality

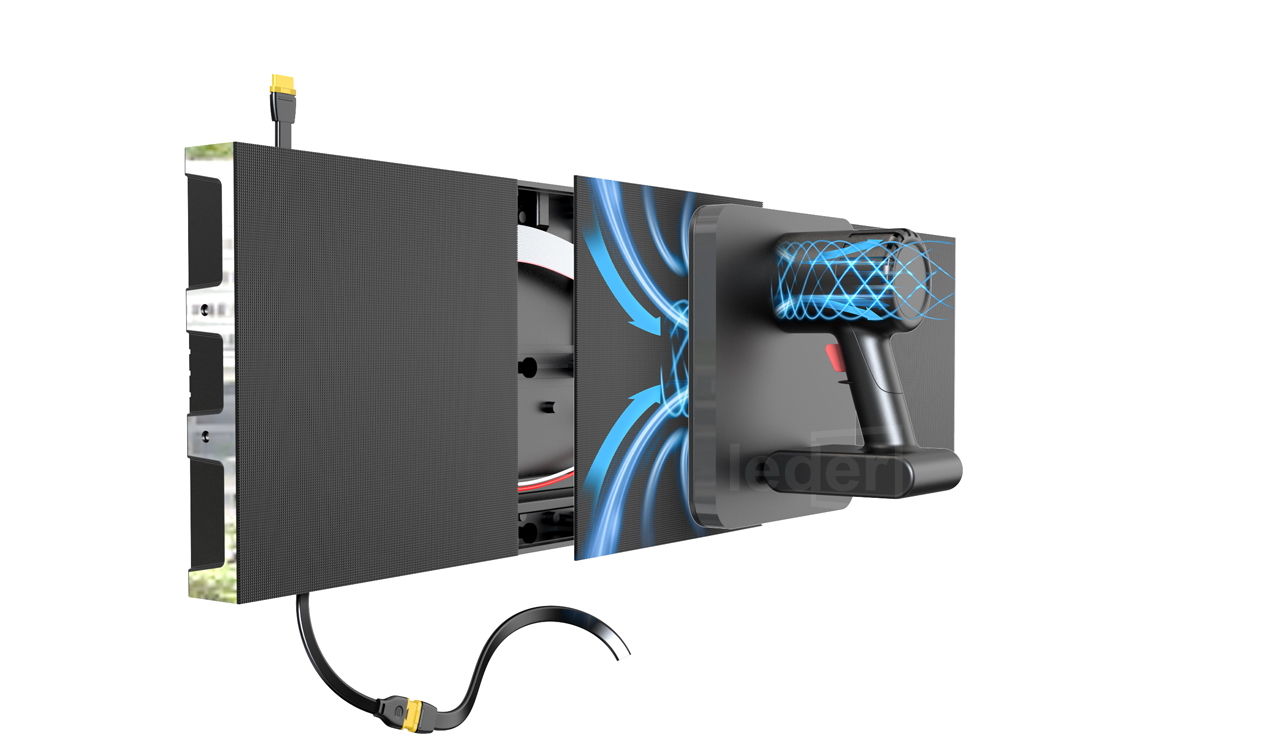

Front maintenance
Quick magnetic adsorption front mainte-nance design,easy installation and
quick maintenance.

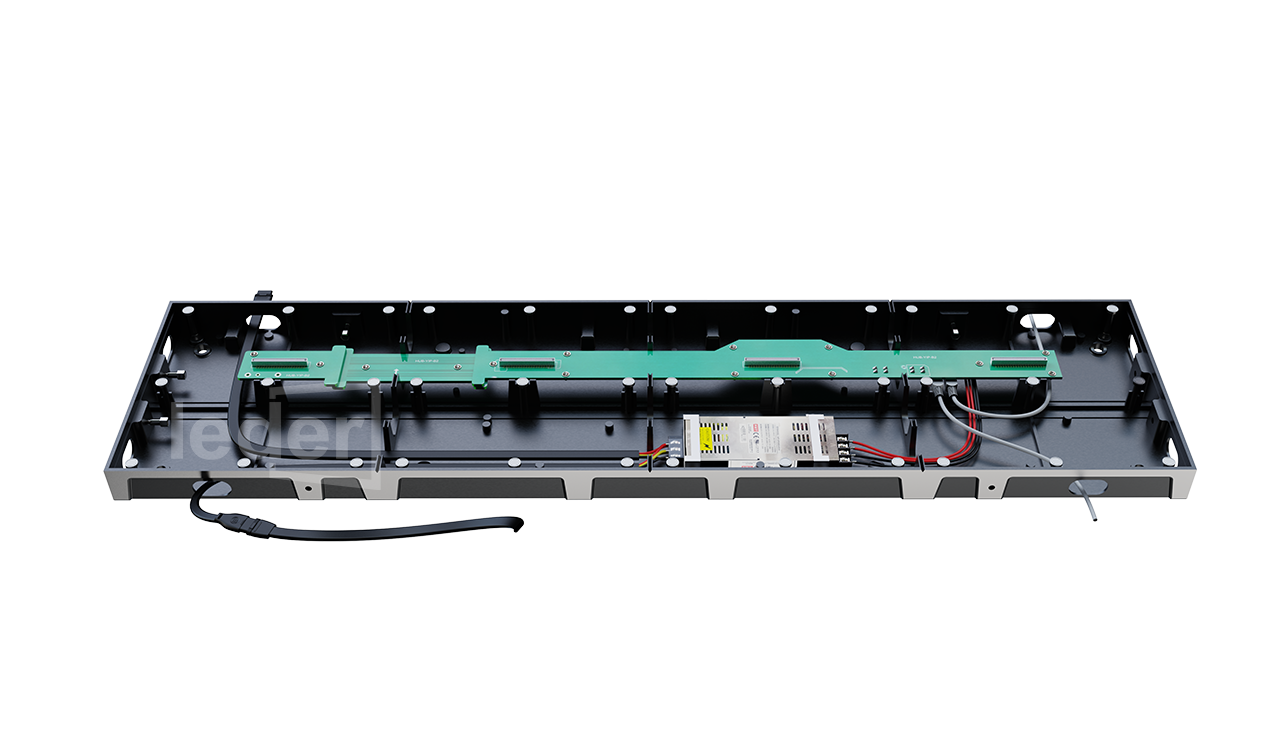

Hard connection and neat cabinet
Hard-connected inside the cabinet, concisely cable
wiring,less failure, easy installation and maintenance.

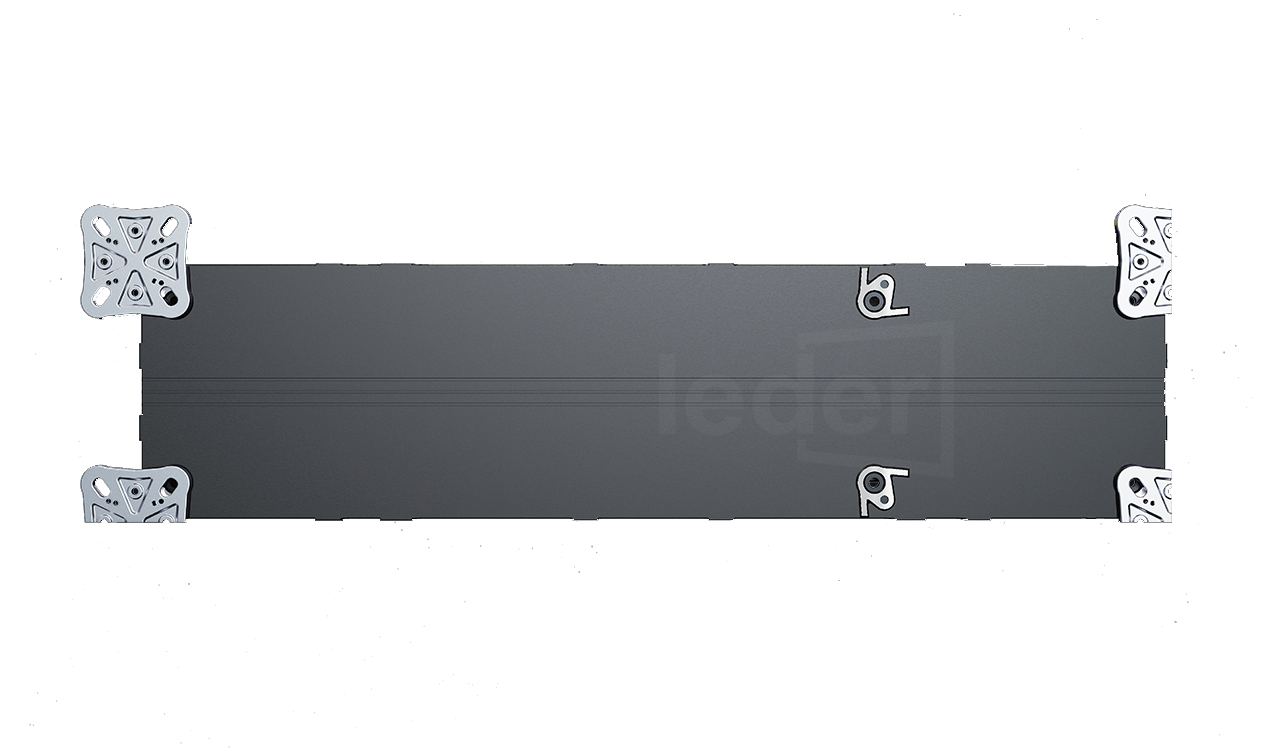

Die casting alloy connecting plate
Point to point high precision aluminum alloy
diecasting connecting plate, the screen is
installed with higher flatness and stability.

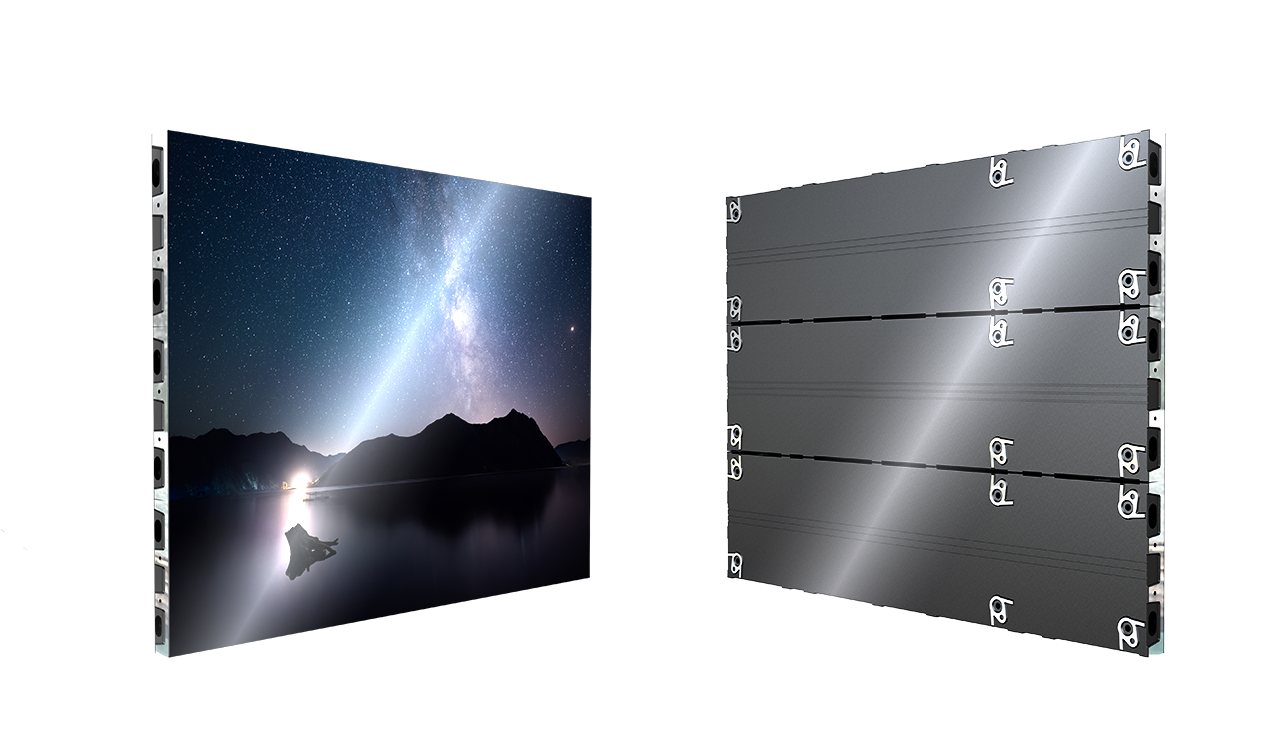

High flatness
Die cast aluminum design, higher preci-sion, better flatness, perfect overall
effect.

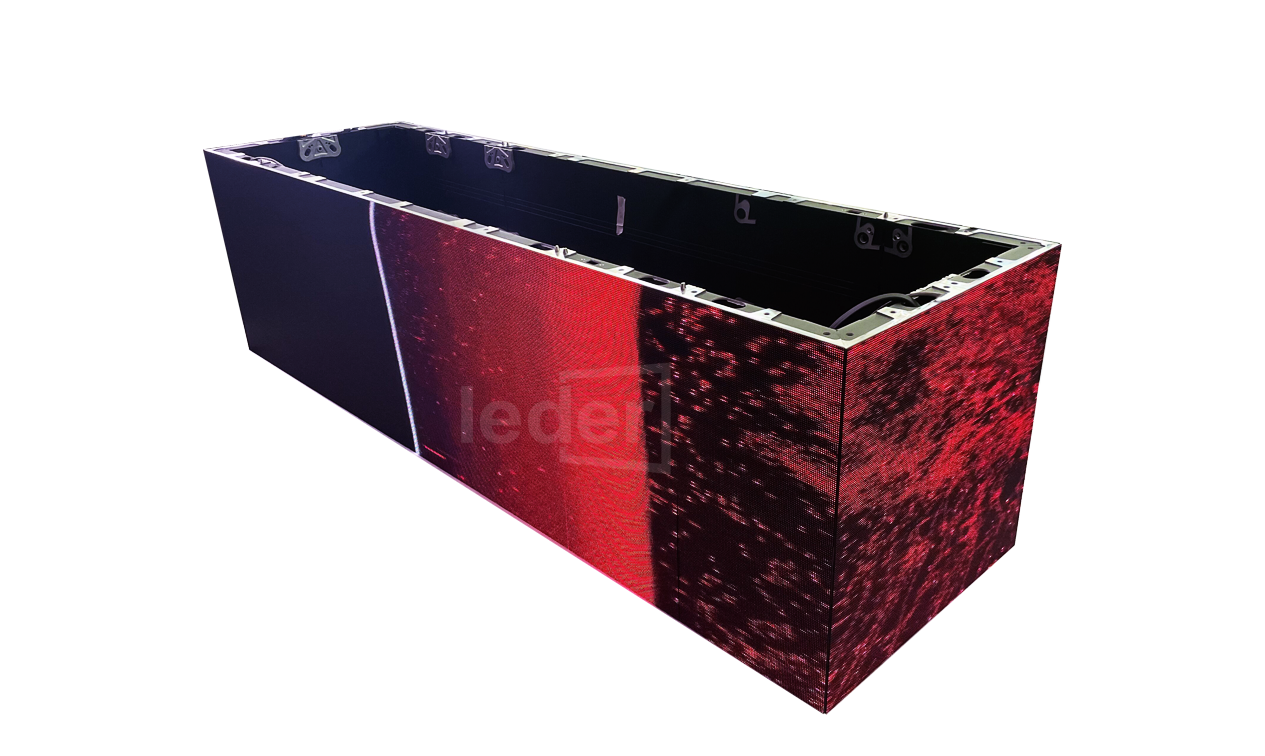

Rectangular splicing
250x250 unique beveled cabinet, freely
to build any bigger size screen and
strong expansibility
| Item | P1.56 | P1.95 | P2.5 | P2.6 | P2.97 | P3.91 |
| Pixel Pitch | 1.5625mm | 1.953mm | 2.5mm | 2.604mm | 2.976mm | 3.906mm |
| LED Type | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD2020 | SMD2020 |
| Module Resolution | 160dots x 160dots | 128dots x 128dots | 100dots x 100dots | 96dots x 96dots | 84dots x 84dots | 64dots x 64dots |
| Driving Mode | 1/40scan | 1/32scan | 1/50scan or 1/25scan | 1/32scan | 1/28scan | 1/16scan |
| Module Pixels | 25,600dots | 16,384dots | 10,000dots | 9,216dots | 7,056dots | 4,096dots |
| Module Size | 250mm x 250mm | |||||

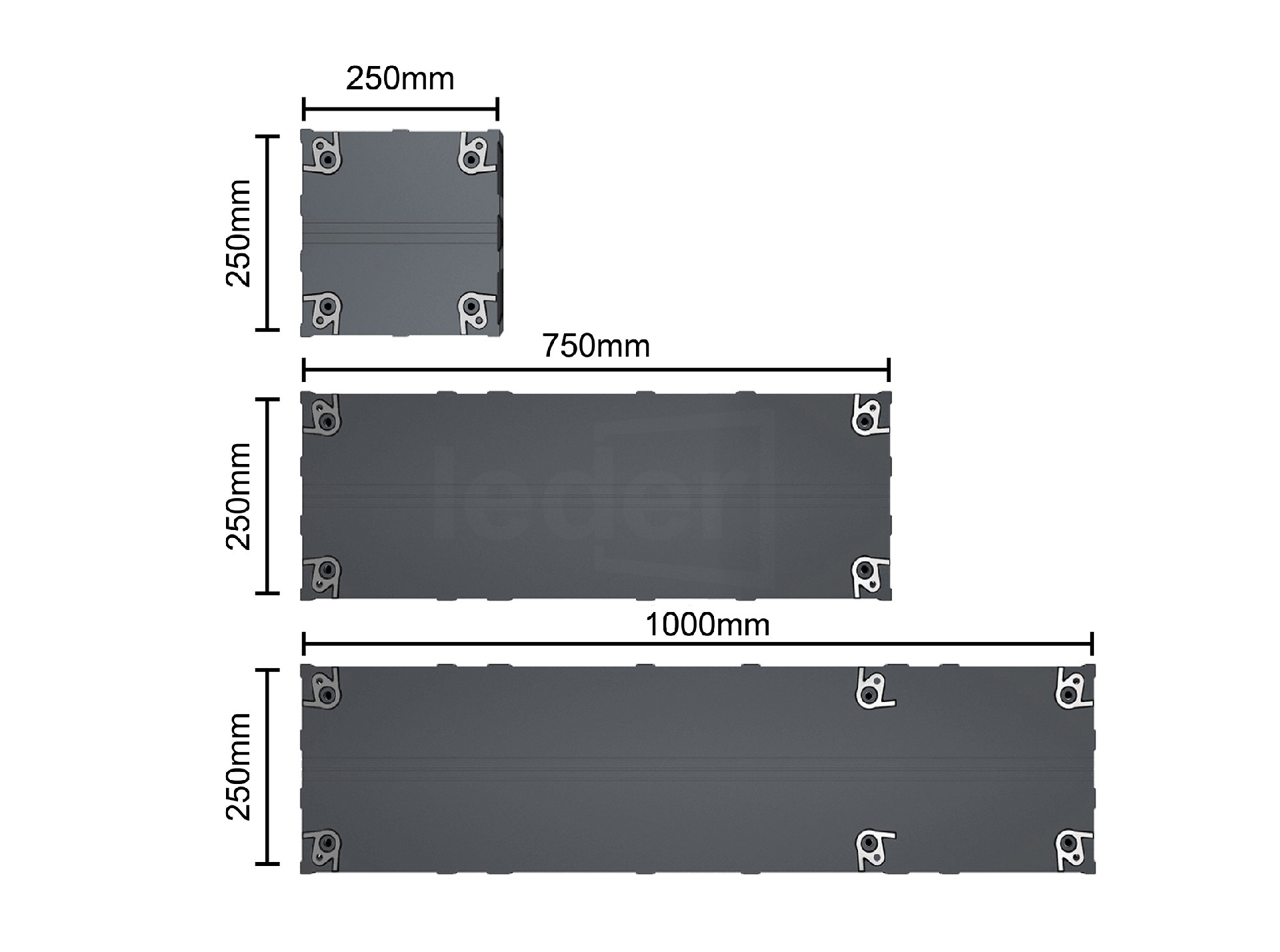

| Cabinet Size | 1,000mm x 250mm or 750mm x 250mm or 250mm x 250mm | |||||
| Cabinet Resolution (1000mm x 250mm) | 640dots x 160dots | 512dots x 128dots | 400dots x 100dots | 384dots x 96dots | 336dots x 84dots | 256 x 64dots |
| Pixel Density | 409,600dots/㎡ | 262,144dots/㎡ | 160,000dots/㎡ | 147,456dots/㎡ | 112,896dots/㎡ | 65,536dots/㎡ |
| Best Viewing Distance | ≥1.5m | ≥1.9m | ≥2.5m | ≥2.6 m | ≥2.9 m | ≥3.9 m |
| Brightness | 500nits | 800nits | 600nits or 1,200nits | 800nits | 800nits | 800nits |
| IP Grade | IP43 | |||||
| Refresh Rate | 3,840Hz | |||||
| Gray Scale | 14bits～22bits | |||||
| Viewing Angle | H:110° / V:110° | |||||
| Maximum Power Consumption | 500W/ ㎡ | 500W/ ㎡ | 500W/ ㎡ | 450W/ ㎡ | 350W/ ㎡ | 300W/ ㎡ |
| Average Power Consumption | 160W/ ㎡ | 160W/ ㎡ | 160W/ ㎡ | 150W/ ㎡ | 115W/ ㎡ | 100W/ ㎡ |
| Screen Lifespan | ≥100,000 hours | |||||
| Input Voltage | AC110V - AC220V @ 50Hz/60Hz | |||||
| Operating Temperature | ﹣20℃～50℃ | |||||
| Operating Humidity | 10%～90% | |||||
| Cabinet Material | Die-casting Aluminum | |||||
| Cabinet Weight | 5.5kg/panel | 5.3kg/panel | 5.2kg/panel | |||
| Operating System | Windows (Win7, Win10, etc.) | |||||
| Signal Source Compatibility | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. | |||||
