LUM Series

LUM outdoor series display screen,high-grade aluminum alloy frame,high precision, concise modeling, mature industrial deign structure, easy to transport,installation safety, stability, durability, front and back maintenance.

01

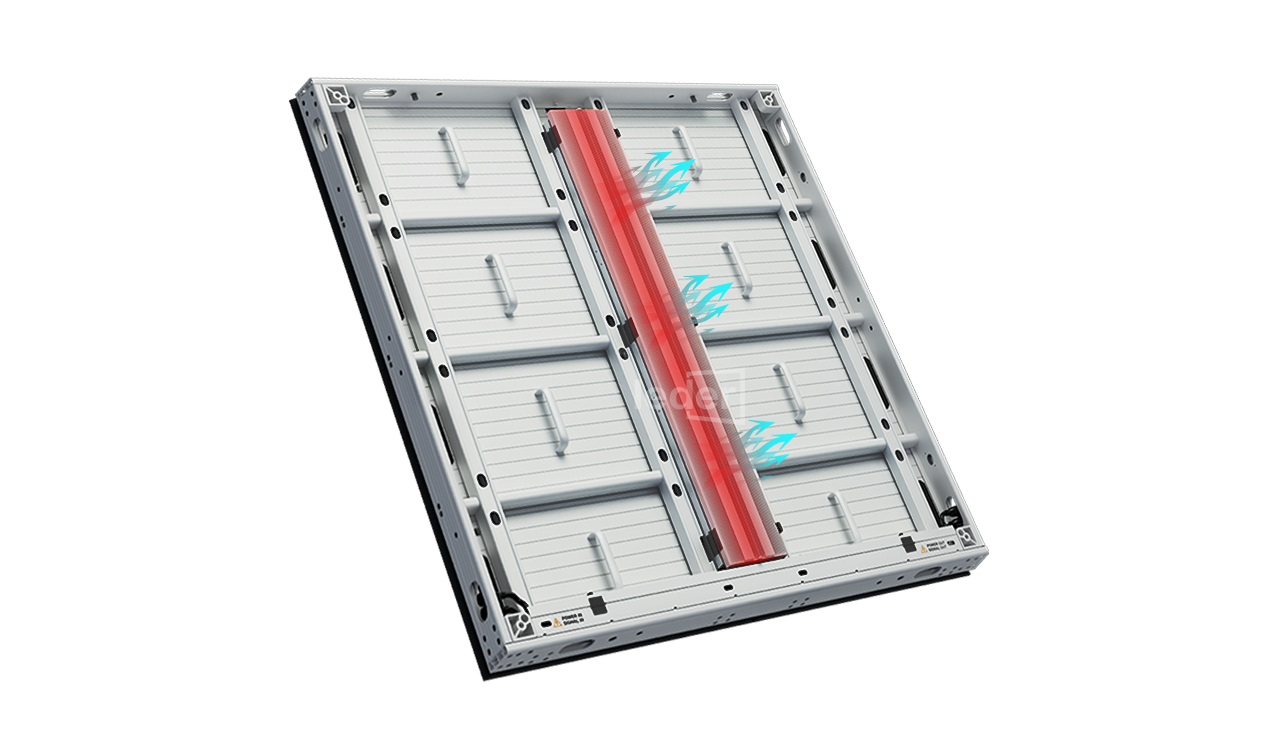

Head heat dissipation effect

No fan design,metal raster back cover,large grid coverage area,high density,fully contact the air,quickly take away display screen heat

02

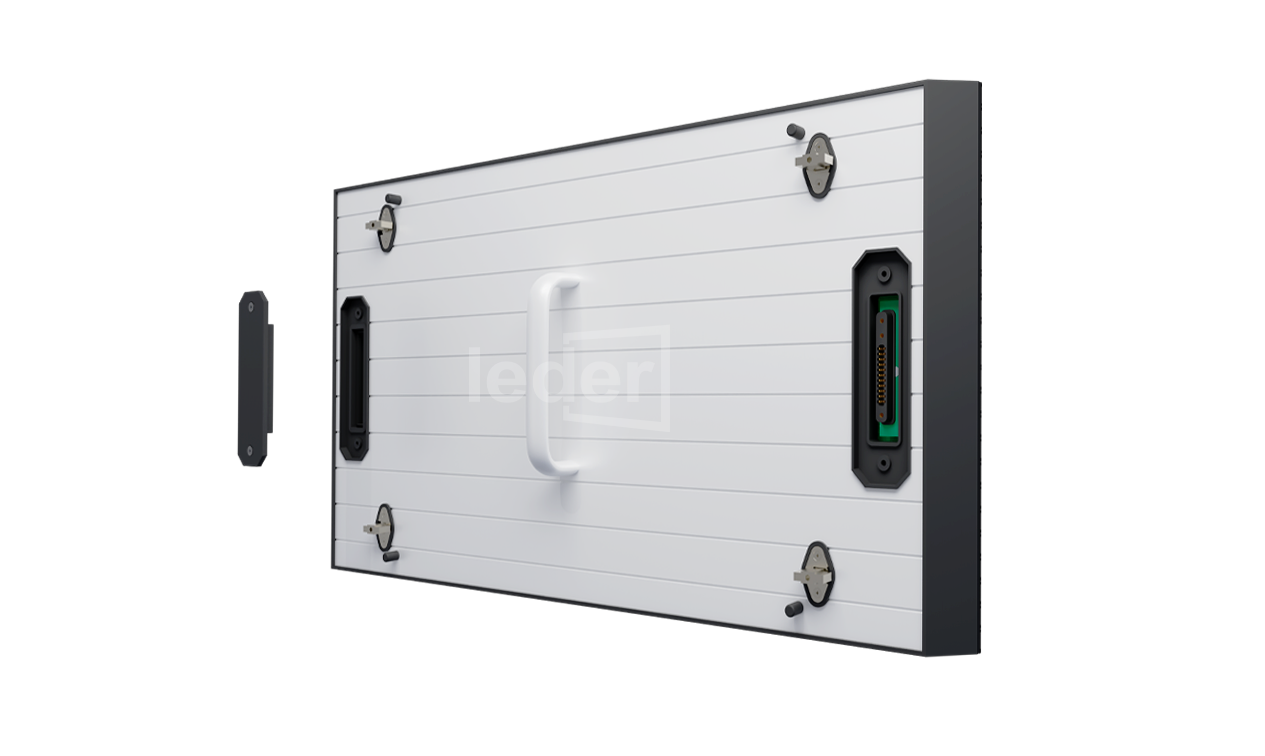

Dual ports module


  2. Dual power/signal ports,hidden design, support left/right modules interchangeable connection. 45°angle design module.

  3. Module 45° angle design, easy to deal with various right-angle projects.

03

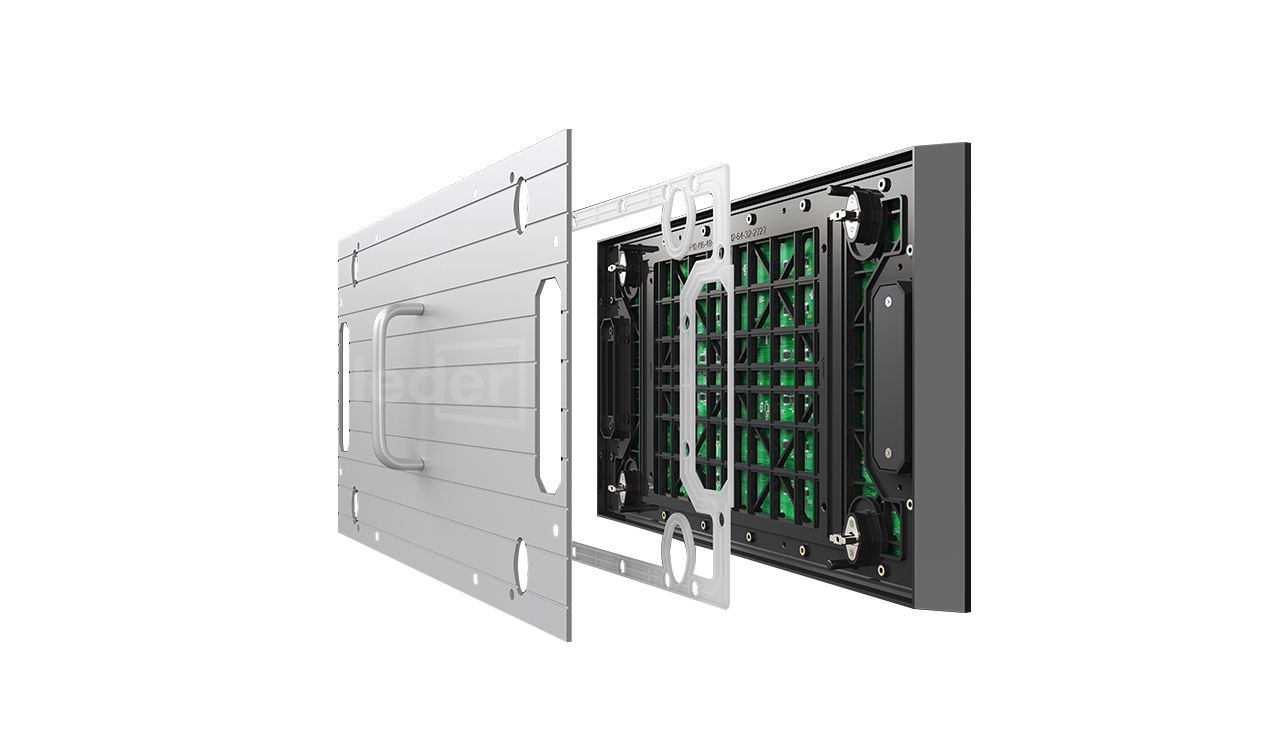

Metal heat dissipation, good sealing effect

  1. The module is equipped with aluminum alloy heat sink, which has high thermal conductivity and good heat dissipation effect, ensuring the stable performance of the screen.

  2. High airtight insulating rubber ring, dustproof, waterproof, moistureproof, excellent airtight performance.

04

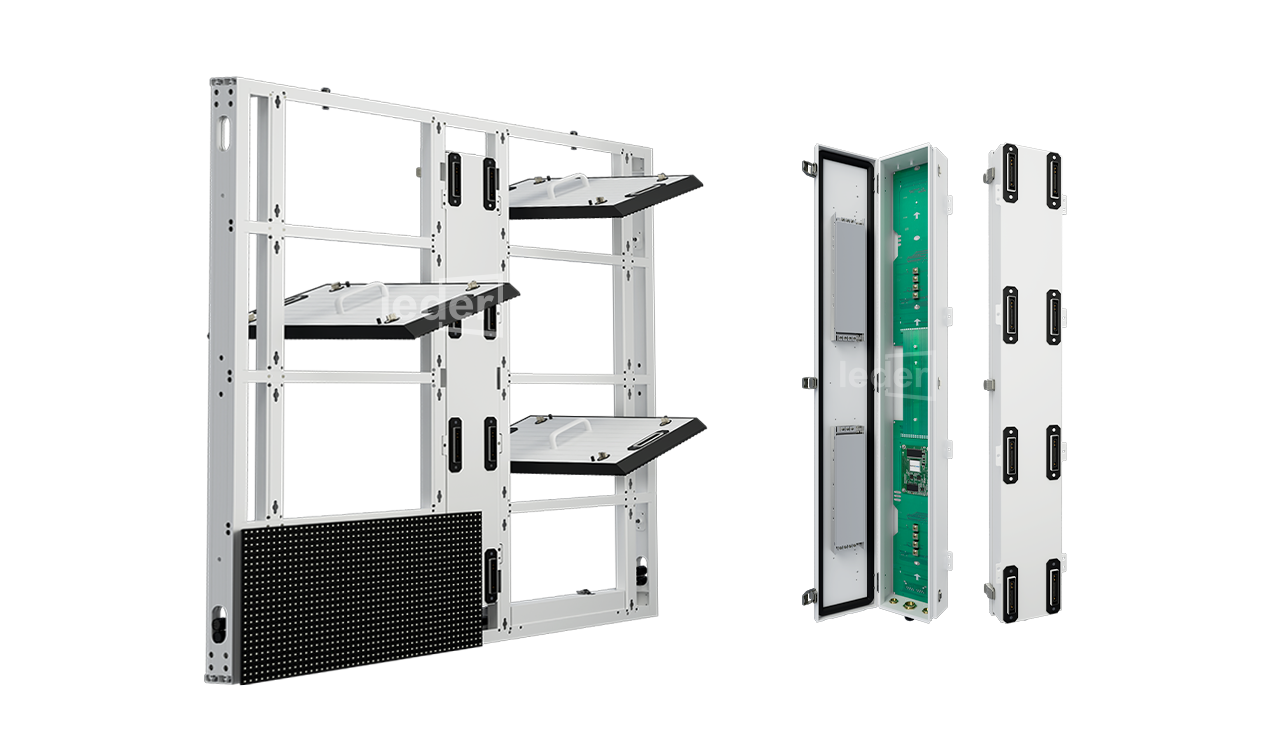

Front / Rear maintenance

Without environmental constraintsand support the removal of modules in front and back for maintenance.

05

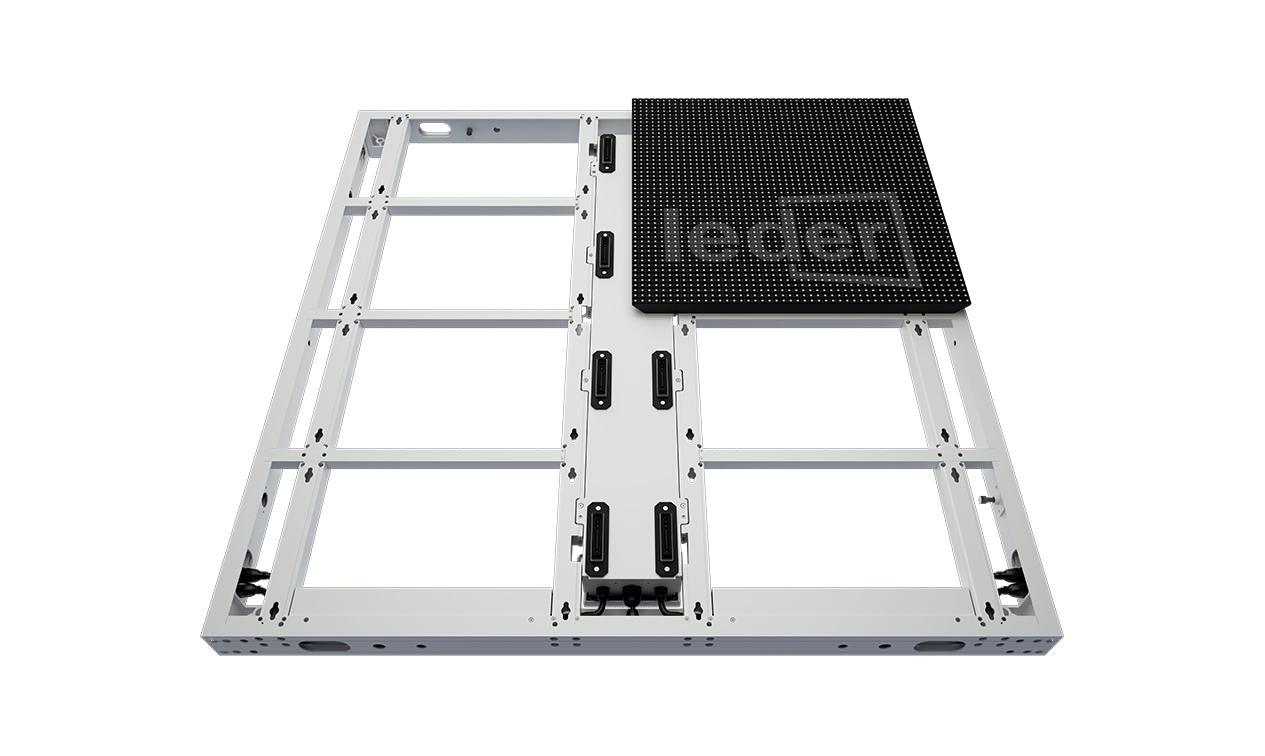

Hub connection

The whole panel adopts Hub connection between module and receiver for signal and power.

06

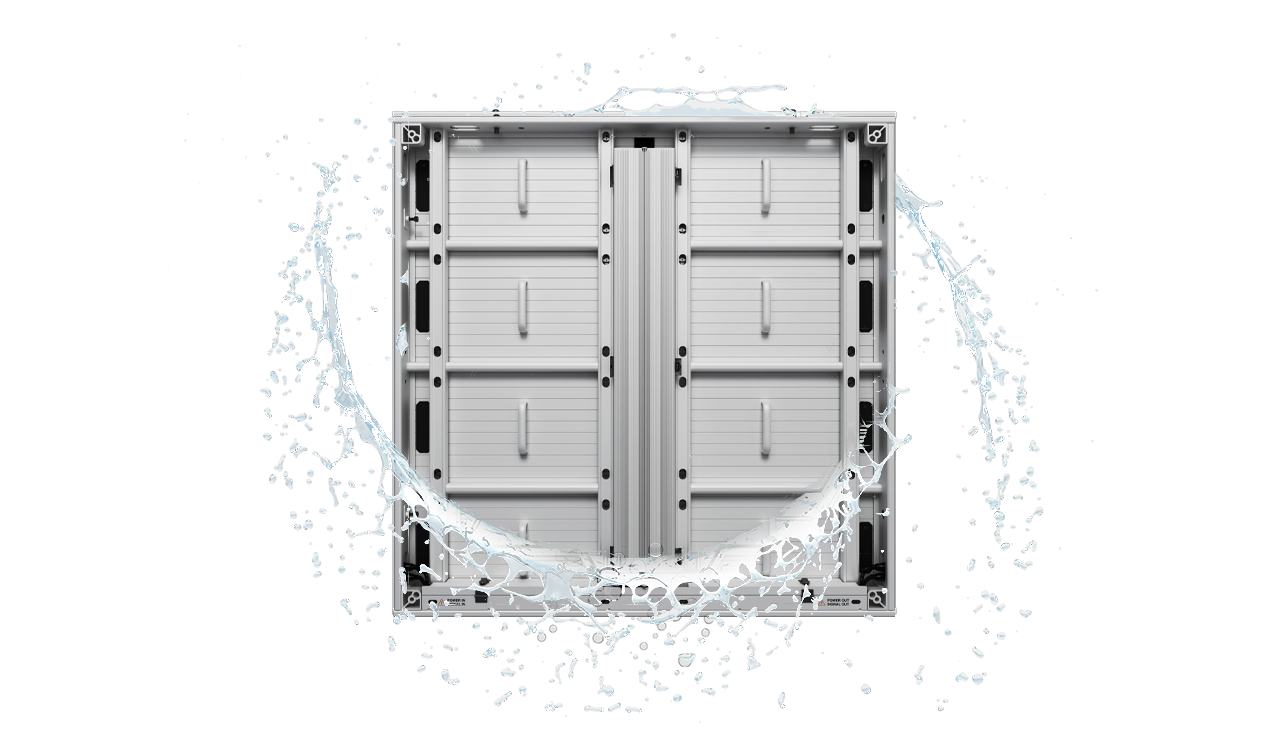

Excellent outdoor protection

Full sealed module, side waterproof design, the protection class of the module reaches IP66, sealed power supply design. Dust-proof, moisture-proof, anticorrosion, perfect solution to the three proofings problems of display screen.



Parameter
ItemP2.97P3.91P4.81 P6.25P7.8P10.4
Pixel   Pitch2.97mm3.906mm4.807mm 6.25mm7.8125mm10.417mm
LED TypeSMD1415SMD1921SMD1921 SMD2727SMD2727SMD2727
Module   Resolution168dots × 84dots128dots × 64dots104dots ×   52dots 80dots × 40dots64dots × 32dots48dots x 24dots
Driving   Mode1/21scan1/16scan or   1/8scan1/13scan or   1/7scan1/5scan1/4scan1/2scan
Module   Pixels14,112dots8,192dots5,408dots 3,200dots2,048dots1,152dots
Module   Size500mm(W)   × 250mm(H)
Cabinet   Size1,500mm × 1,000mm or 1,000mm × 1,000mm or 1,000mm × 750mm or 1,000mm × 500mm
Cabinet   Resolution
(1000mm × 1000mm)		336dots ×   336dots256dots ×  256dots208dots ×  208dots160dots ×  160dots128dots ×  128dots96dots × 96dots
Pixel   Density112,896dots/㎡65,536dots/㎡43,264dots/㎡ 25,600dots/㎡16,384dots/㎡9,216dots/㎡
Best  Viewing Distance≥ 2.97m≥ 3.9m≥ 4.8m ≥ 6.2m≥ 7.8m≥ 10m
Brightness5000nits4,500nits or 6,000nits or 9000nits 6,000nits or 9,000nits 6,000nits or   9,500nits 6,000nits or   1,0000nits
IP GradeIP66
Refresh  Rate3,840Hz
Gray   Scale16bits
Viewing   AngleH:110°   / V:110°
Maximum   Power Consumption600W/㎡560W/㎡ / 600W/㎡590W/㎡ / 630W/㎡ 580W/㎡600W/㎡
Average   Power Consumption170W/㎡160W/㎡ / 170W/㎡170W/㎡/180W/㎡ 165W/㎡170W/㎡
Input   VoltageAC110V～AC220V @ 50Hz / 60Hz
Operating   Temperature﹣20℃～50℃
Operating   Humidity10%～90%
Cabinet   MaterialAluminum   profile

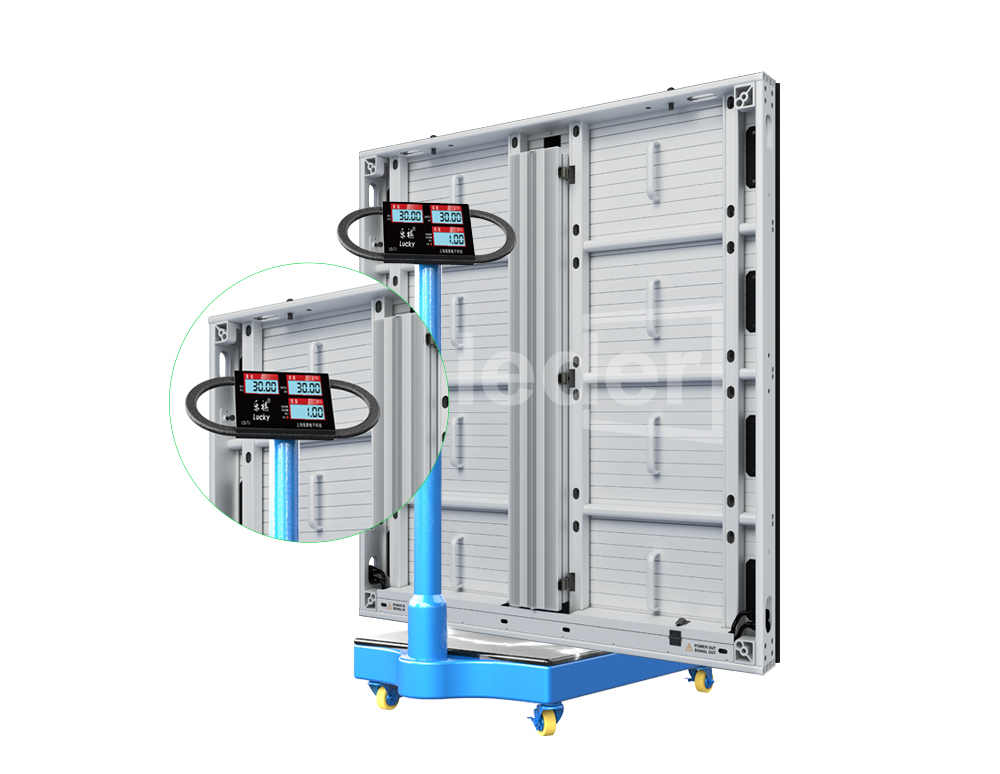

Cabinet   Weight29.5kg
Operating   SystemWindows   (Win7, Win10, etc.)


* Depending on the configuration, the parameters are for reference only. Welcome to inquire. The final interpretation right belongs to Leder
