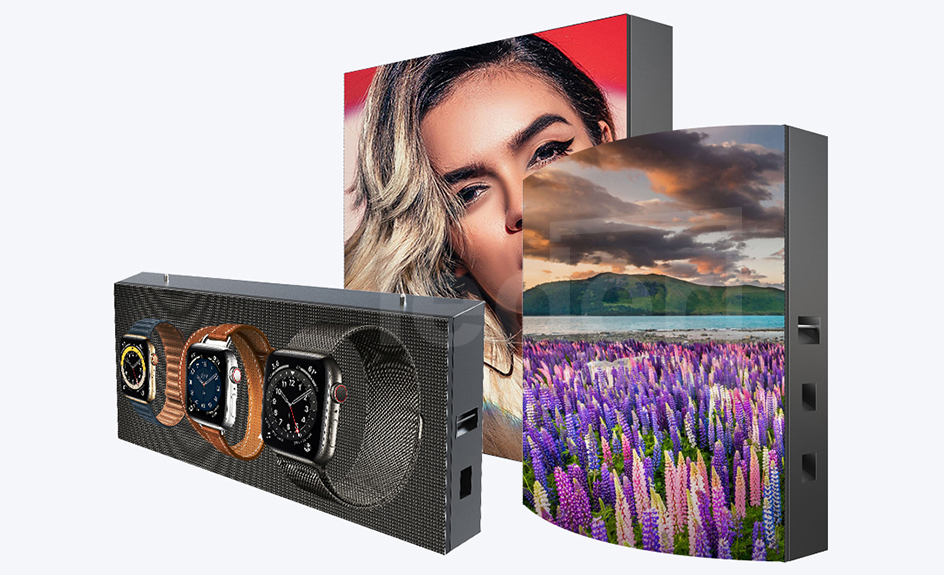

LOF Series
Universal sheet metal box, strong plastic, can be freely customized, free selection of configuration, low maintenance cost, convenient installation, high environmental compatibility, strong cost performance

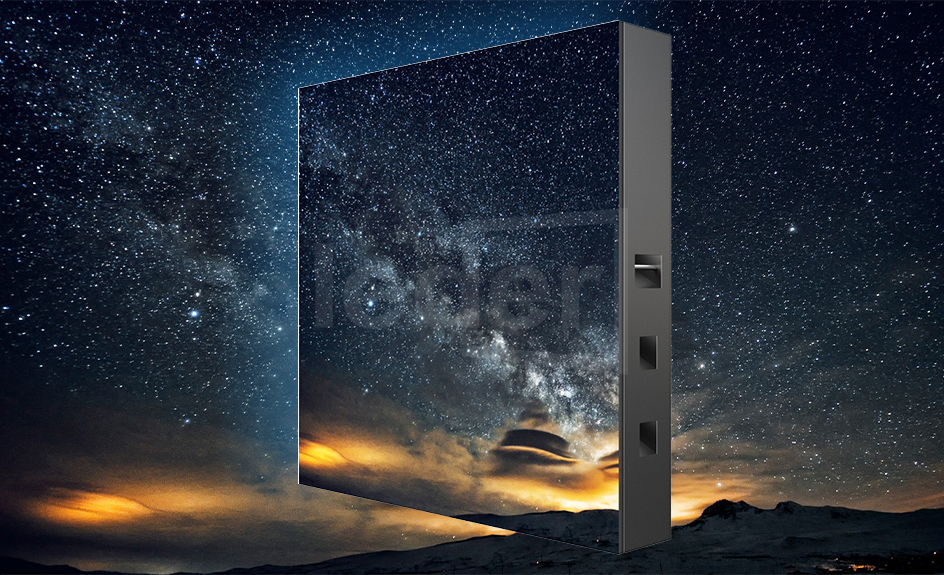

Ultra-clear vision
HDR dynamic display, high gray scale, high brightness, clear and sharp picture display.

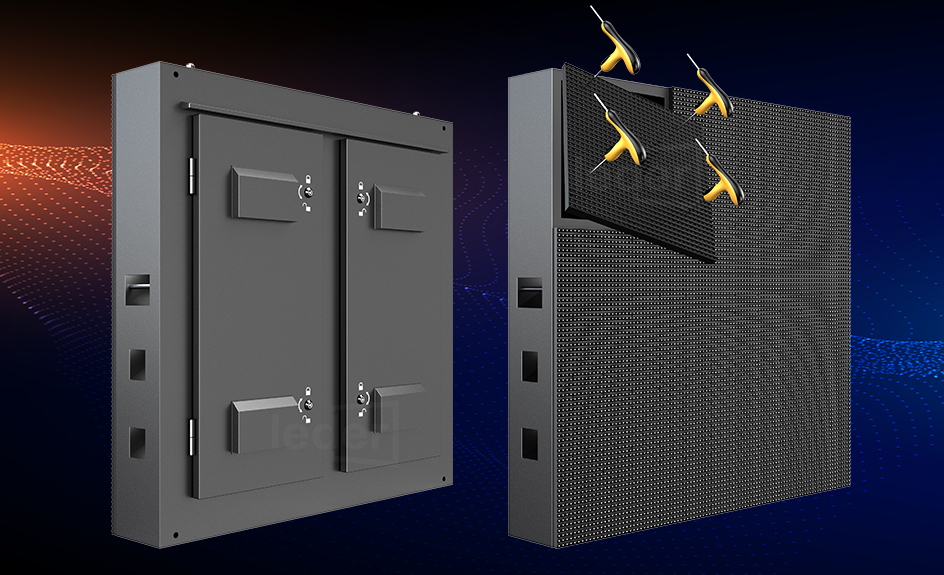

Customize the maintenance method before and after
According to different project requirements, it supports custom box maintenance methods, and all components can be maintained before and after.

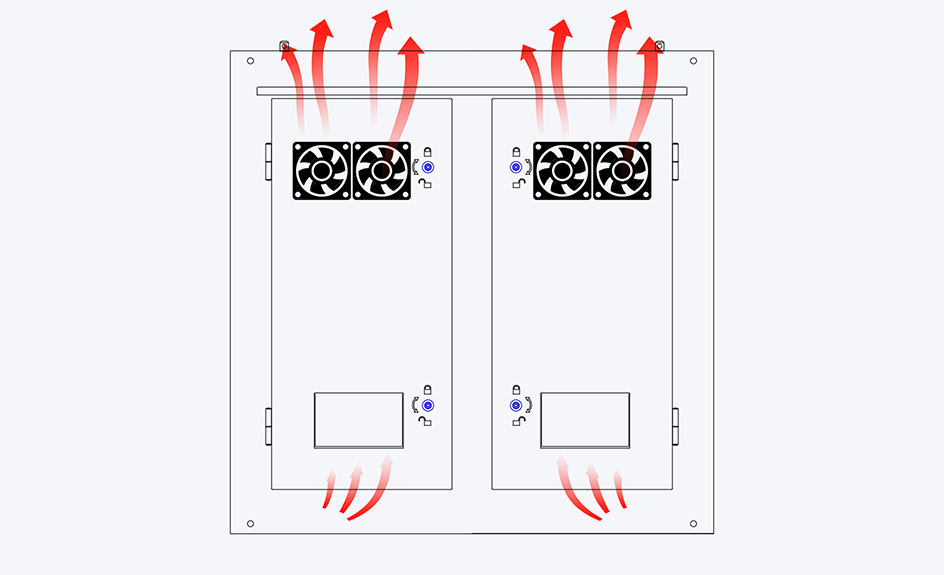

Multi-channel air cooling
Powerful output of multi-channel fans, fast air exchange speed inside the box, fast cooling speed
wide viewing angle
Ultra-wide viewing angle in H/V direction, the picture is clear and stable, no color cast, no deformation

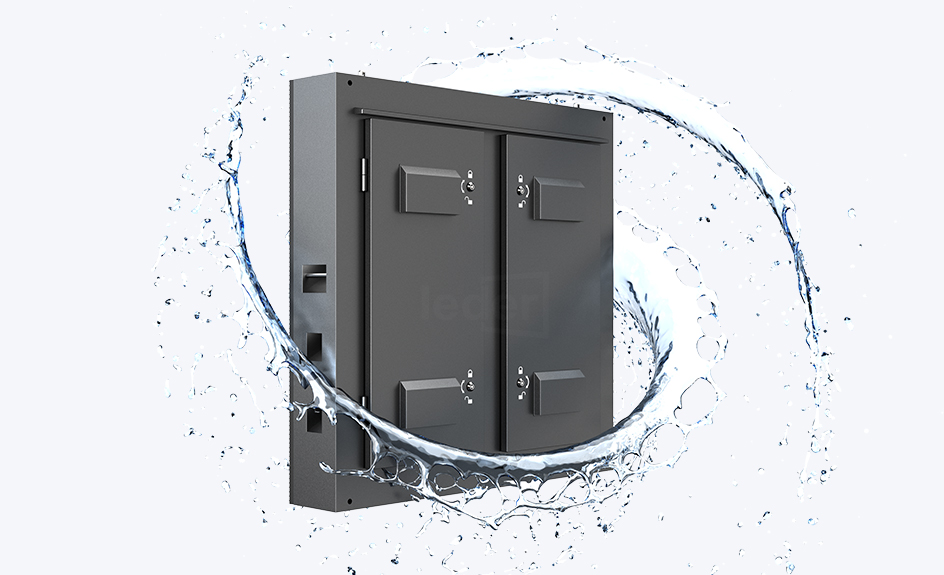

Excellent outdoor protection ability
IP65 level of protection, edge protection against backflow through the cable port, isolation of water vapor corrosion, high degree of sealing of modules and rear doors, dust-proof, waterproof and corrosion-resistant.

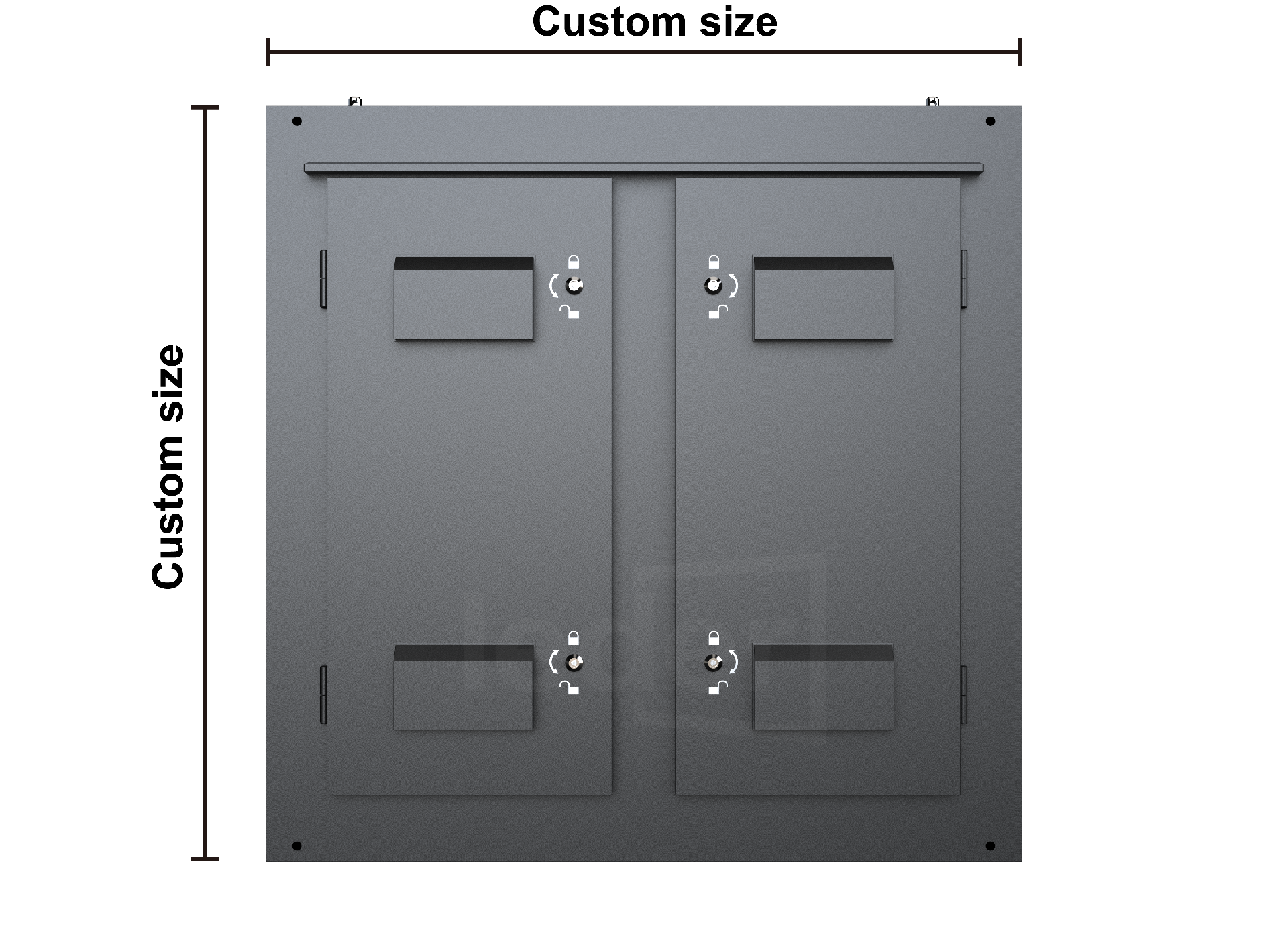

Customized box, strong plasticity
The sheet metal forming box has strong plasticity and supports customization of various unconventional size boxes.
Ultra-high refresh rate
High refresh rate, up to 3840Hz, high brightness, fast screen response, no flickering screen display under camera and video shooting, smooth and stable screen display.
| Item | P3.91 | P4.81 | P5 | P6.15 | P6.67 | P8 | P10 | P10 | P16 | P20 |
| Pixel Pitch （mm） | P3.906 | 4.807 | 5 | 6.154 | 6.667 | 8 | 10 | 10 | 16 | 20 |
| LED Type | SMD1921 | SMD1921 | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 | DIP346 | DIP346 | DIP346 |
| Module Resolution (dots) | 64 × 64 | 52 × 52 | 64× 32 | 52 × 26 | 48 × 24 | 40 × 40 | 32 × 32 | 32 ×16 | 20 ×10 | 16 × 8 |
| Driving Mode (scan) | 1/16 or 1/8 | 1/7 | 1/8 | 1/7 | 1/6 | 1/4 | 1/2 | 1/4 | static | static |
| Module Pixels (dots) | 4,096 | 2,704 | 2,048 | 1,352 | 1,152 | 1,600 | 1,024 | 512 | 200 | 128 |
| Module Size (mm) | 250 × 250 | 320 × 160 | 320 × 320 | 320 × 160 | ||||||
| Cabinet Size (mm) | 1,000 × 1,000 | 960 × 960 | ||||||||
| Cabinet Resolution （dots） | 256 × 256 | 208 × 208 | 192 ×192 | 156 × 156 | 144 × 144 | 120 × 120 | 96 × 96 | 96 × 96 | 60 × 60 | 48 × 48 |
| Pixel Density （dots/㎡） | 65,536 | 43,264 | 40,000 | 26,406.25 | 22,500 | 15,625 | 10,000 | 10,000 | 3,906 | 2,500 |
| Best Viewing Distance | ≥3.9m | ≥4.8m | ≥5m | ≥6m | ≥6.67m | ≥8m | ≥10m | ≥10m | ≥16m | ≥20m |
| Brightness（nits） | 4,500 or 6,000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 7000 | 7000 | 6000 |
| IP Grade | IP65 | |||||||||
| Refresh Rate | 1,920Hz～3,840Hz(depends on IC driver solution) | |||||||||
| Gray Scale | 14bits～22bits(depends on IC driver and controller solution ) | |||||||||
| Viewing Angle | H:110° / V:110° | H:110° / V:55° | ||||||||
| Maximum Power Consumption （W/㎡） | 750 or 1000 | 1000 | 750 | 750 | 680 | 800 | 800 | 530 | 500 | 500 |
| Average Power Consumption（W/㎡） | 250 or 330 | 330 | 250 | 250 | 220 | 260 | 260 | 170 | 160 | 160 |
| Input Voltage | AC110V～AC220V @ 50Hz / 60Hz | |||||||||
| Operating Temperature | ﹣20℃～50℃ | |||||||||
| Operating Humidity | 10%～90% | |||||||||
| Cabinet Material | Iron / Aluminum | |||||||||
| Cabinet Weight (kg/㎡) | 45 or 38 | 45 or 38 | 45 or 38 | 45 or 38 | 45 or 38 | 45 or 38 | 45 or 38 | 65 or 55 | 65 or 55 | 65 or 55 |
| Operating System | Windows (Win7, Win10, etc.) | |||||||||
| Signal Source Compatibility | DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc. | |||||||||
