Creative Series

Creative Series indoor ultra-thin display cabinet. Adopted integrated die-casting aluminum design, lighter and compact, the thickness is only 30mm, which is one of the thinnest cabinets.Screen aspect ratio is 16:9, meet the prevailing golden ratio of the market.The splicing way is simple and easy to operate, as well as the fixed steel frame structure. Less consumables, strong environmental compatibility.

01 Front maintenance

Quick magnetic adsorption front maintenance
design easy installation and east maintenance.
02

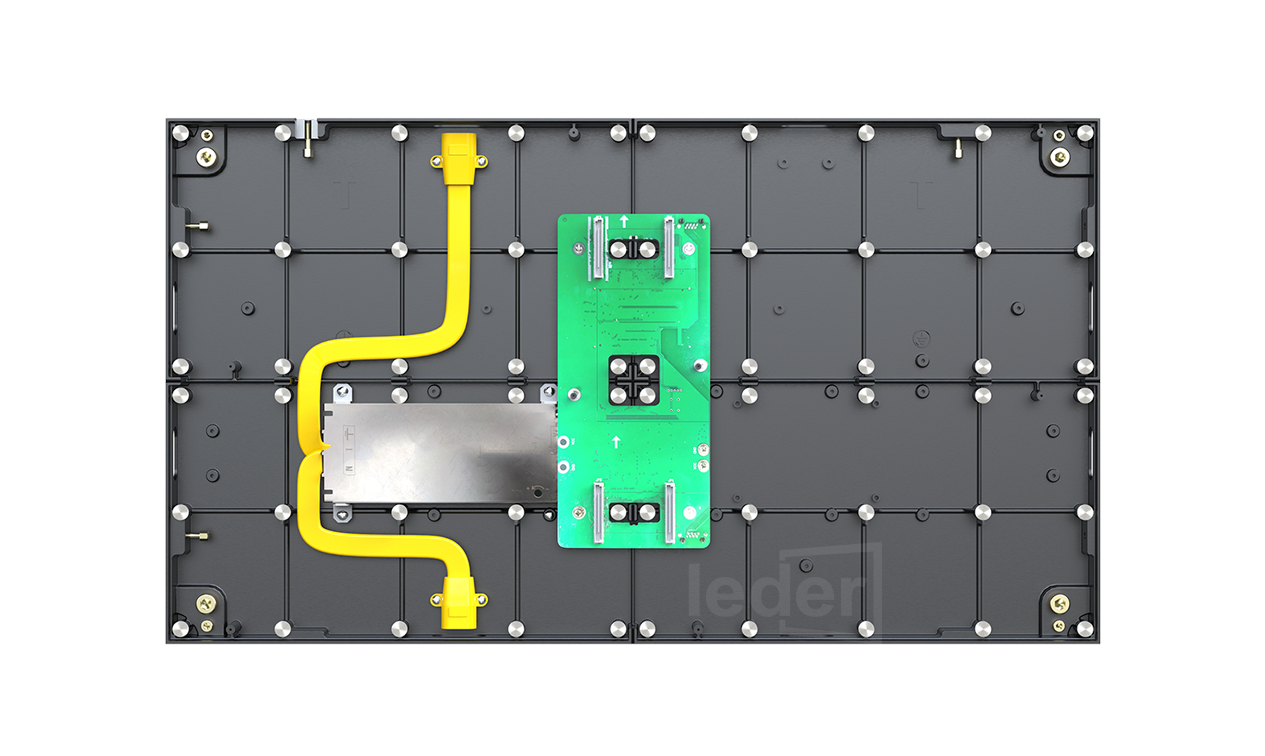

Neat cabinet inside

Cabinet space neat and concise, lowfailure rate,easy maintenace.

03

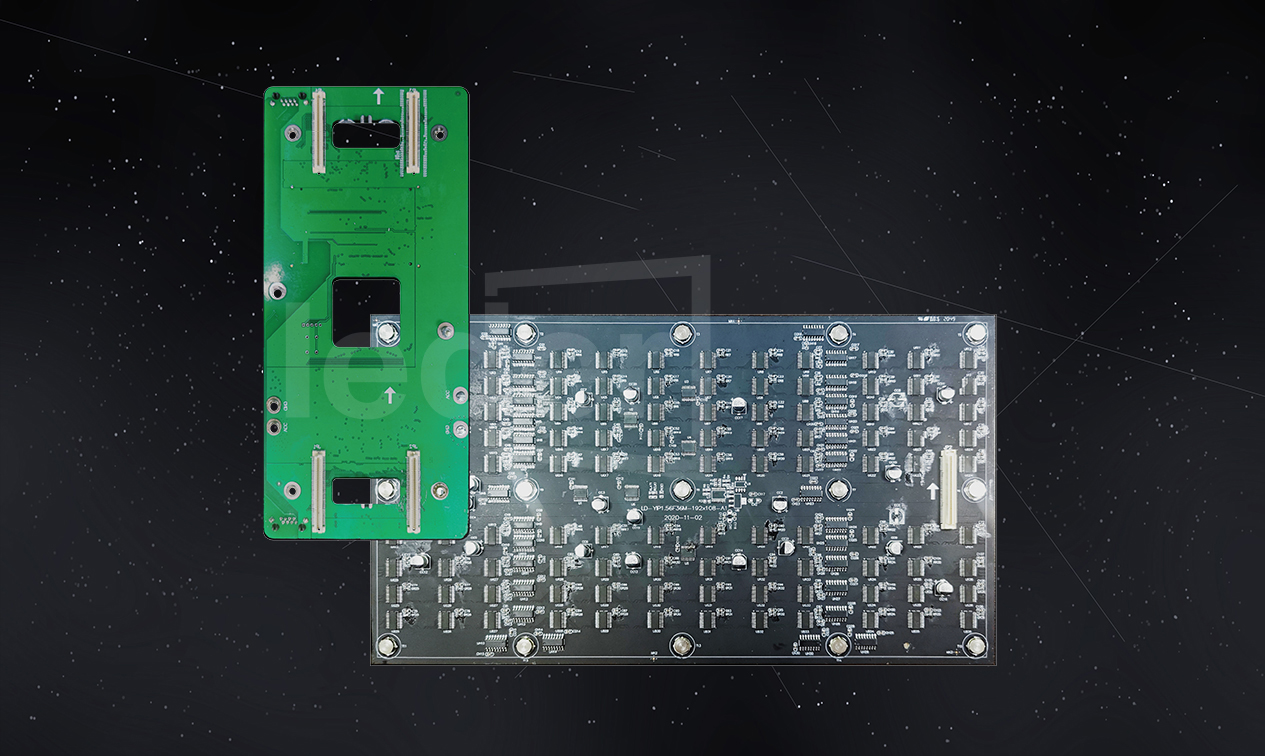

HUB Hard connection

Module data transmitted by HUB board, more reliable and stable.

04

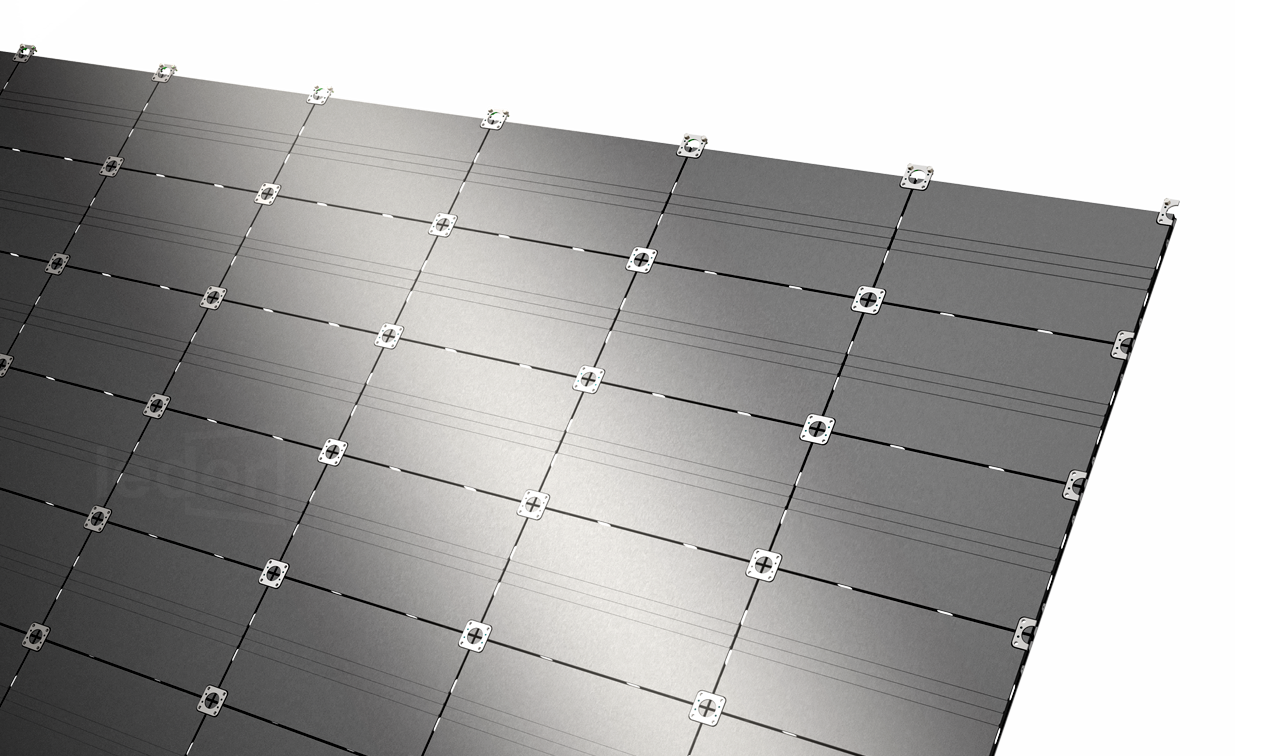

High flatness

Embedded connection, the connector is installed directly into the cabinet Screen backside without any protrusion, high flatness.

Parameter
ItemP0.9P1.25P1.56P1.875
Pixel   Pitch0.9375mm1.25mm1.5625mm1.875mm
LED TypeCOBSMD1010SMD1212SMD1515
Module   Resolution160dots ×  180dots240dots ×  135dots192dots ×  108dots160dots ×  90dots
Driving   Mode1/54scan1/45scan1/36scan1/45scan
Module   Pixels28,800dots32,400dots20,736dots14,400dots
Module   Size150mm × 168.75mm300mm × 168.75mm300mm × 168.75mm300mm ×   168.75mm
Cabinet   Size600mm(W)   × 337.5mm(H) × 30mm(D)
Cabinet   Resolution640dots ×   360dots480dots ×   270dots384dots ×   216dots320dots ×   180dots
Pixel   Density1,137,777dots/㎡640,000dots/㎡409,600dots/㎡284,444dots/㎡
Best   Viewing Distance≥0.9 m≥1.2 m≥1.5 m≥1.8 m
Brightness600nits600nits600nits800nits
IP GradeIP43
Refresh   Rate3,840Hz
Gray   Scale14bits～22bits
Viewing   AngleH:160°   / V:160°H:120°   / V:120°H:110°   / V:110°
Maximum   Power Consumption400W/㎡400W/㎡320W/㎡400W/㎡
Average   Power Consumption130W/㎡130W/㎡105W/㎡130W/㎡
Input   VoltageAC110V～AC220V @ 50Hz / 60Hz
Operating   Temperature﹣20℃～50℃
Operating   Humidity10%～90%
Cabinet   MaterialDie-casting   Aluminum

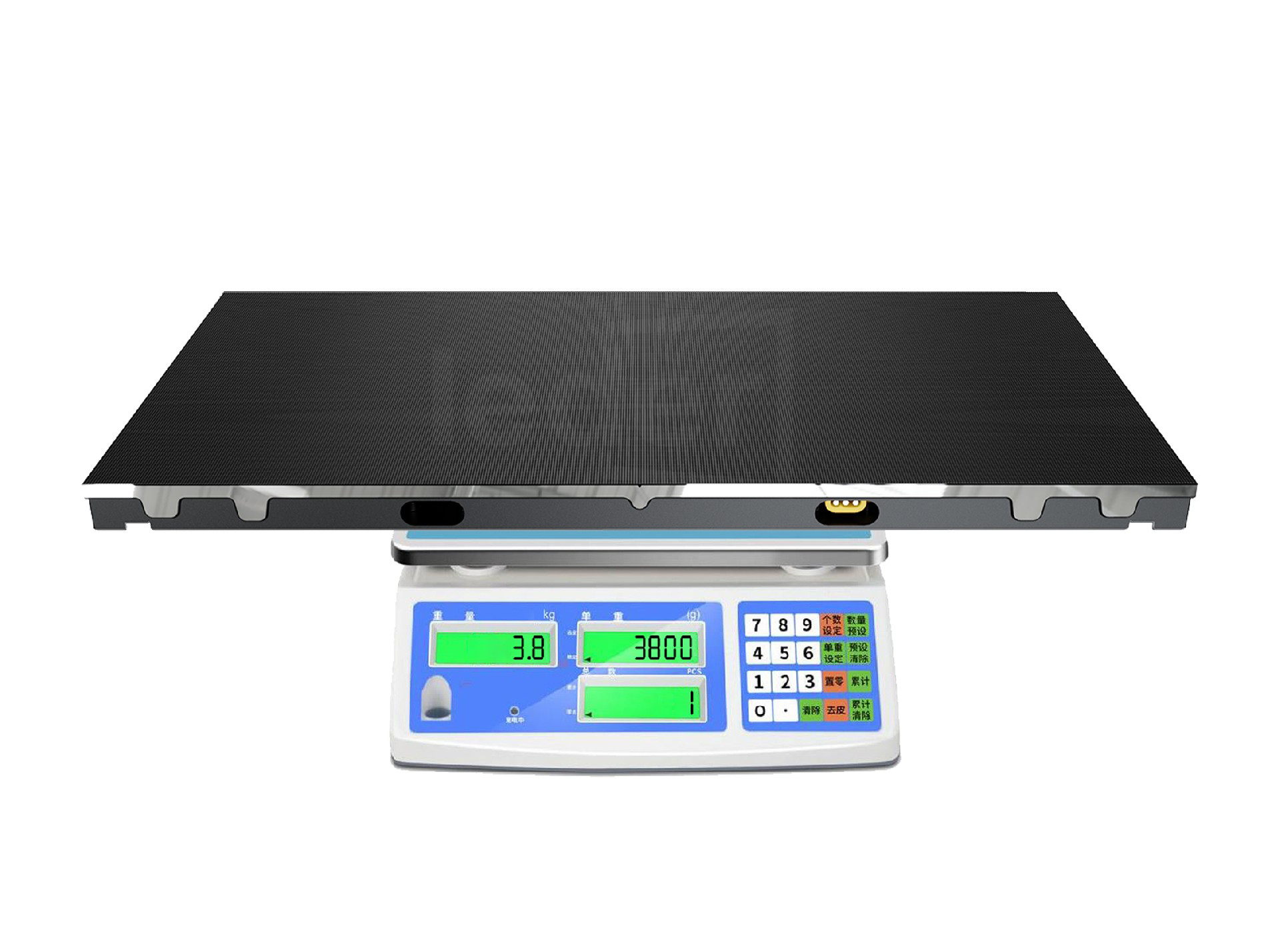

Cabinet   Weight3.8kg/panel
Operating   SystemWindows   (Win7, Win10, etc.)
Signal   Source CompatibilityDVI,   HDMI1.3, DP1.2, SDI, HDMI2.0, etc.


* Depending on the configuration, the parameters are for reference only. Welcome to inquire. The final interpretation right belongs to Leder
